Adaptive Technologies MM-017 25LB Indoor Speaker Wall Mount, Single Unit

Adaptive Technologies MM-017 25LB Indoor Speaker Wall Mount, Single Unit

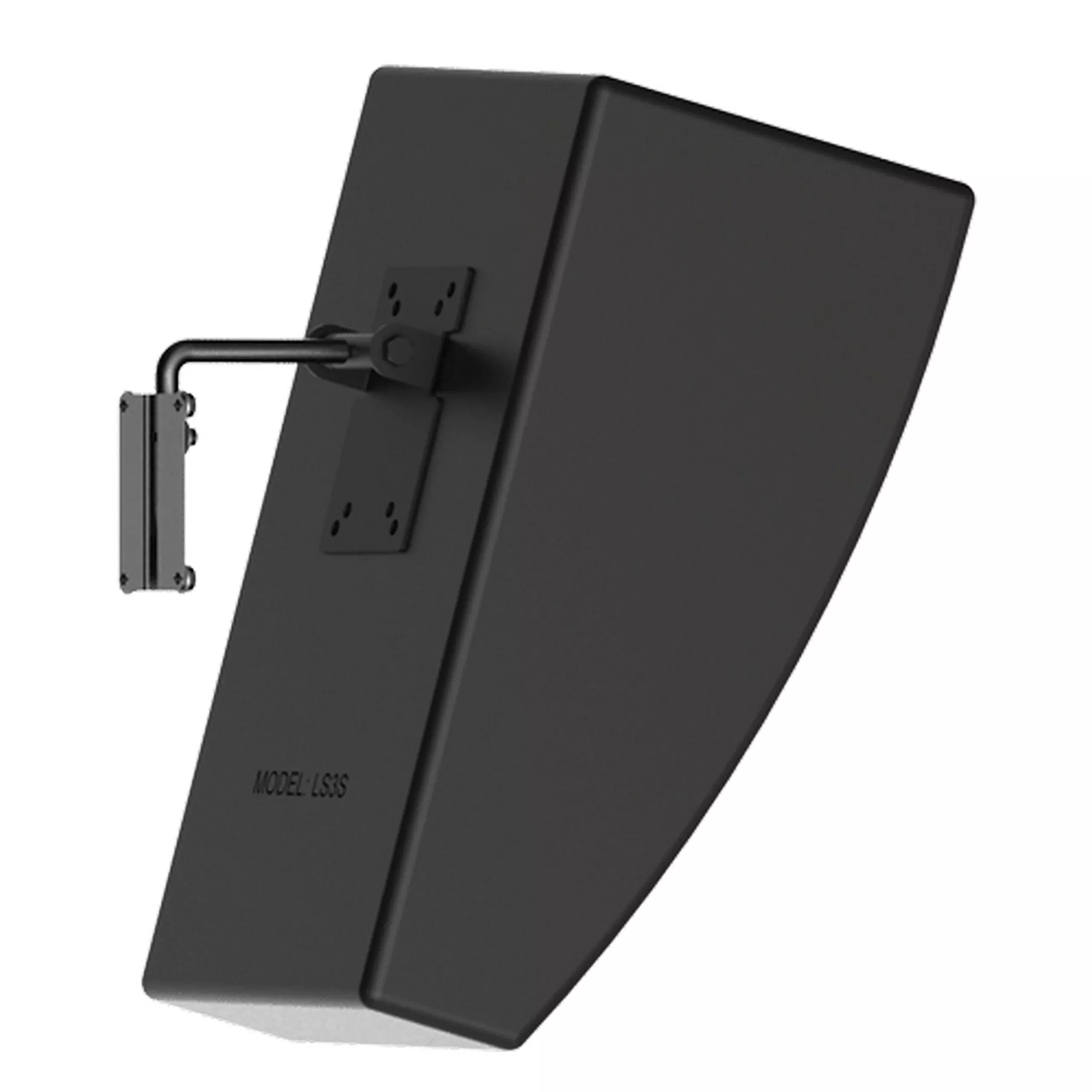

TheMultiMount MM-017 Indoor Speaker Wall Mount quickly and permanently attachessurround loudspeakers to auditorium walls and offers a full range of pan andtilt rotations.

This makesit easy to mount and aim surround speakers accurately in cinema applications.

Its extendedsupport arm firmly anchors speakers even through deep sound panels and drapes(up to 2.5”/63.5 mm deep) and allows precise, no-drift rotational adjustments.

MultiMountMM-017 Indoor Speaker Wall Mount s unique support arm acts as a convenientcarrying handle during installation. Once the mount has been inserted intoplace, the mounting plate does the job of handling all the weight. This leavesthe installer’s hands free to complete the wiring and positioning process.

Key Features

• Weatherresistant for covered outdoor and indoor use
• Separatepan, tilt and clockwise rotations
• Infiniteaiming and locking angles
• No “memory”or “drift”
• Accommodatesspeakers with 4 hole mounting
• patterns,including 2.00” x 4.25” and 2.75” x 5.00”

TechnicalSpecifications

Material
StructuralSteel Alloy
Finish
Powder Coat
Color
Black
Design Factor
10:1 ratio
WLL
25 lbs.(11.4 Kg.) max
Net WGT
1.5 lbs/.7kg
Shipping WGT
4 lbs/1.8 kg
Pack Count
1 unit/carton
Included
1 pc 2-axismount
1 pc FlatWasher
1 pc Screw 1/4-20X 1/2” Long
