Adaptive Technologies MP-1.5NPT-GSA 150LB Gimballed Ceiling Mount

Adaptive Technologies MP-1.5NPT-GSA 150LB Gimballed Ceiling Mount

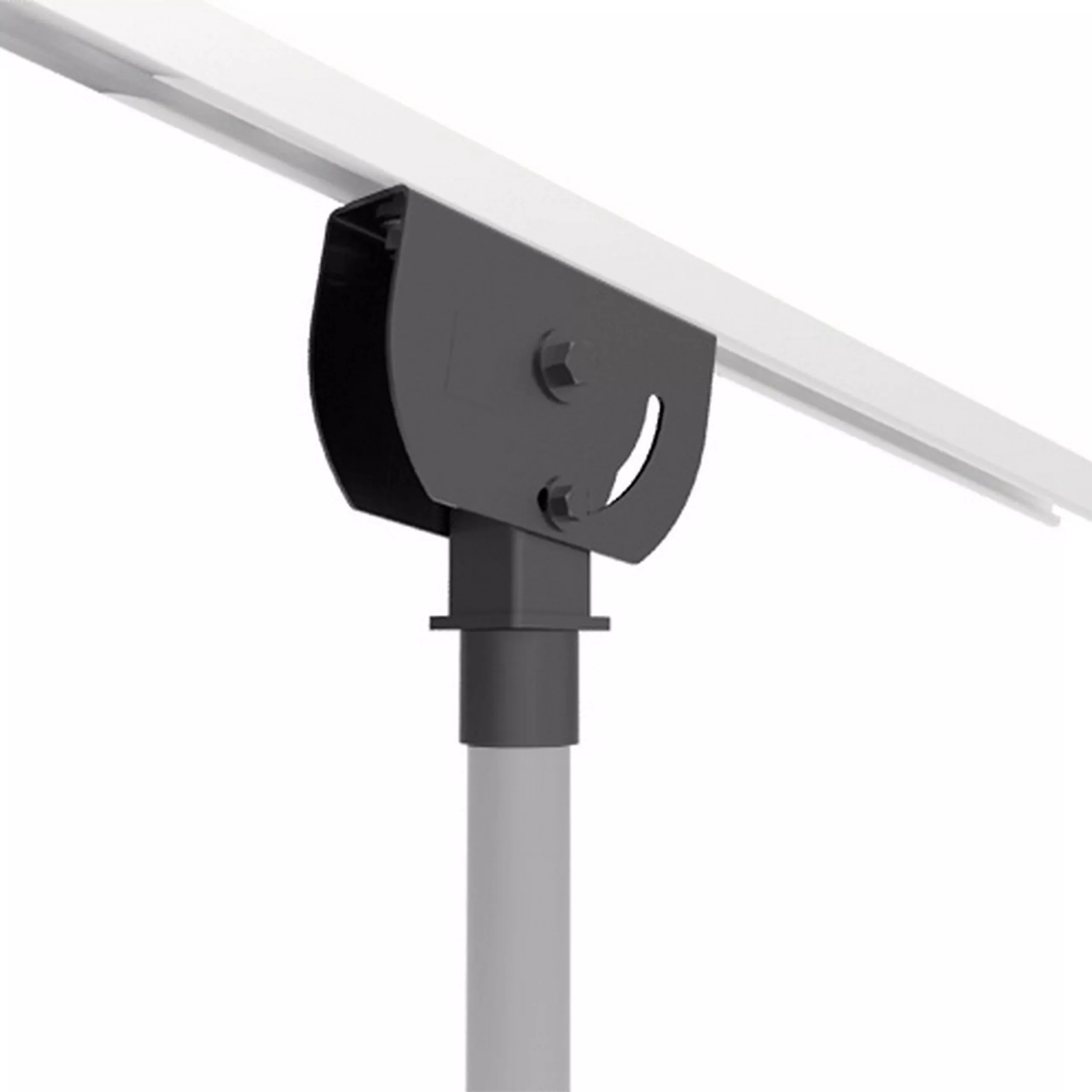

UseAdaptive’s gimballed strut attachment to suspend loudspeakers, video displaysand other objects from Unistrut when attached to angled ceiling and roofstructures, up to 90 degrees off vertical. This adapter mounts quickly andpermanently to Unistrut channel with 1/2-13 spring loaded nuts (not included)or can be bolted through the strut when space permits. This SwivelMountsuspends and locks objects weighing up to 150 lb using standard 1- 1/2”diameter steel pipe.

TechnicalSpecifications

Material
StructuralSteel
Finish
Powder Coat
Color
Black
Design Factor
7:1
WLL
150 lb / 68Kg
Shipping Weight
6.5 lbs / 3Kg
Included
1 pcGimballed Strut Adapter
2 pc 3/8”Flat Washer
2 pcs 2 pcsFlange bolt 1/2-13-2”
2 pcsRetainer nut,1/2-13
2 pcs NylocNut, 1/2-13
1 pcsInstruction Sheet
