Adaptive Technologies PM-010 Vertical and Horizontal Indoor Pole Mount

Adaptive Technologies PM-010 Vertical and Horizontal Indoor Pole Mount

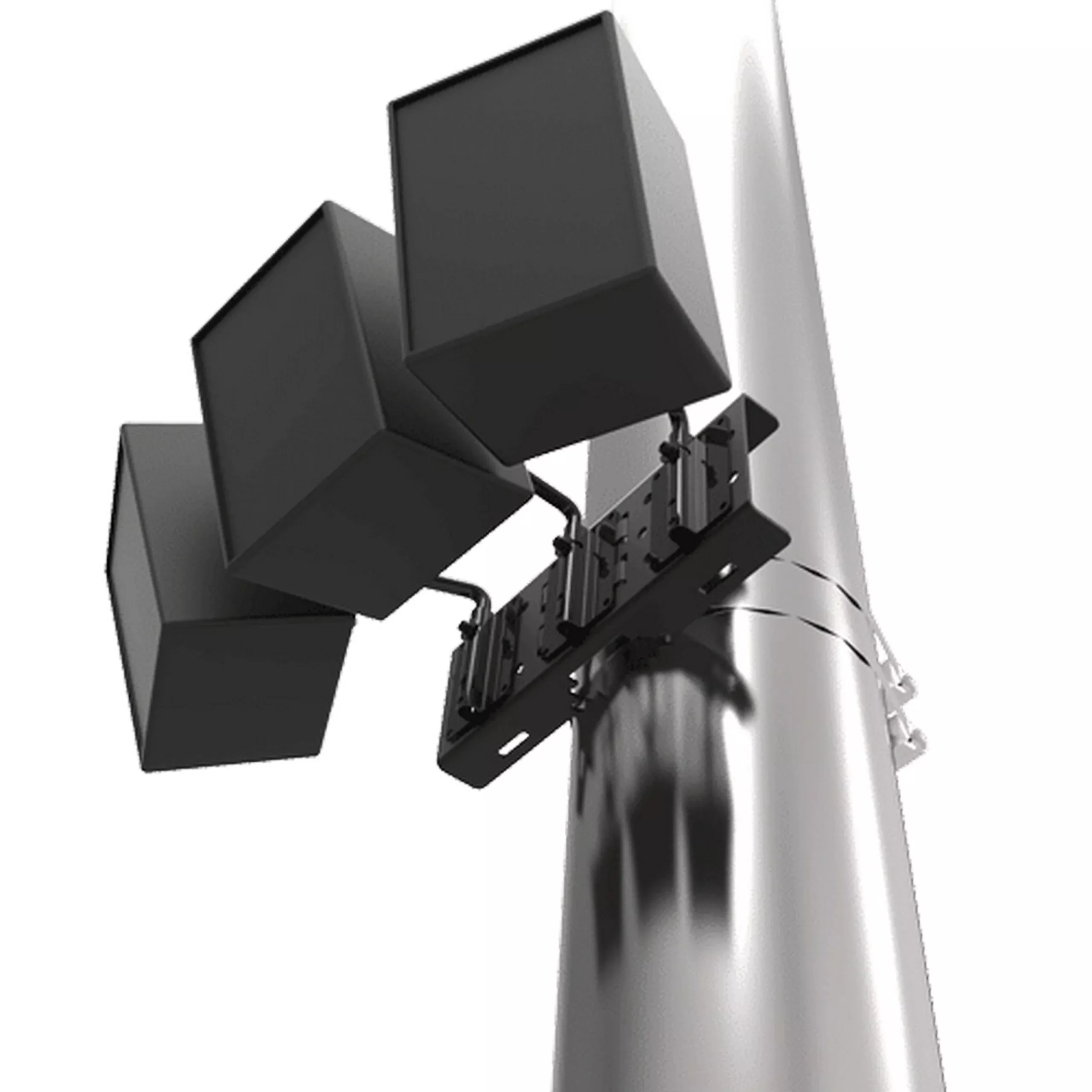

This is a universal pole adapter that adapts the MultiMountand U-Series speaker mounts to poles and columns using stainless steel signbanding. When mounted vertically, the PoleStar grips to 6” and larger diameterpoles and columns. When mounted horizontally, it grips to 4“ and largerdiameter poles and columns. PoleStar is constructed from tough alloy steel toassure reliable permanent installations. it comes in a standard black paintfinish over zinc plate undercoating for indoor and outdoor use. Band kits areavailable separately.

Key Features

• Adapts MultiMount speaker mounts to poles and columns
• Adapts many U-Series speaker mounts to poles and columns
• Adapts SocketMounts to poles and columns
• Adapts Steerables wall mounts to pole and columns
• Zinc plate undercoating for weather resistance
• Universal hole pattern fits many yoke mounts, speaker mounts and U-Brackets

Technical Specifications

Material
Structural Steel Alloy
Finish
Powder coat paint over zinc plate
Color
Black powder coat
WLL*
75 lbs./34 kg. total accumulated load
Design Factor
10:1 ratio
Net Weight
3 lbs./1.4 kg.
Shipping Weight
4 lbs./1.8 kg.
Pack Count
1/carton
