Adaptive Technologies PS-150NPS-2 Saddle Bracket Truss Mount

Adaptive Technologies PS-150NPS-2 Saddle Bracket Truss Mount

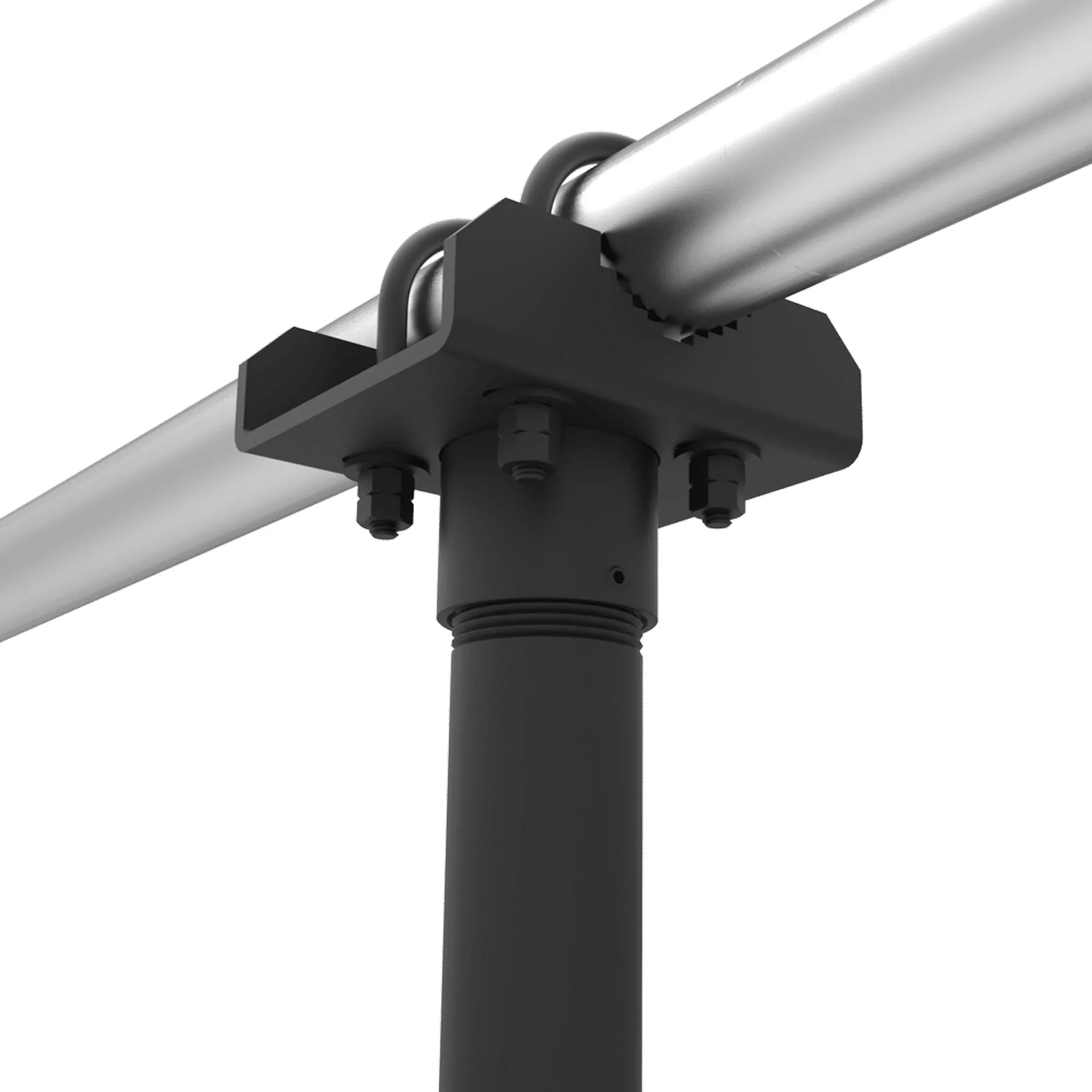

Adaptive Saddle Truss Mounts provide a load rated verticalhang point from overhead truss and offers a secure and load rated suspensionpoint suspending objects with 1-1/2” diameter schedule 40 pipe (NPT & NPS).Saddle Mounts attach directly to box trussing, lighting truss and othertheatrical pipe applications with cord diameters measuring between 1-3/8” OD”to 2-1/2” OD” and provide a vertical connection for 1-1/2” schedule 40 pipe.The Saddle Mount kit includes the powder coated mount with built in set screwlock, two U-Bolts and related hardware.

Key Features

• Provides load rated suspension point for 1.5” pipe
• Accomodates 2” dia pipe & box truss
• Powder coat finish
• Hardware included

Technical Specifications

Material
Structural Steel Alloy
Color
Black
Finish
Powder Coat
WLL
240lb / 109kg
Design Factor
5:1 ratio
PACKAGE CONTENTS
1 pc Saddle Bracket Assembly
1 set U-Bolt Kit
