Adaptive Technologies SAS-100-WM Steerables Indoor Wall Arm Mount

Adaptive Technologies SAS-100-WM Steerables Indoor Wall Arm Mount

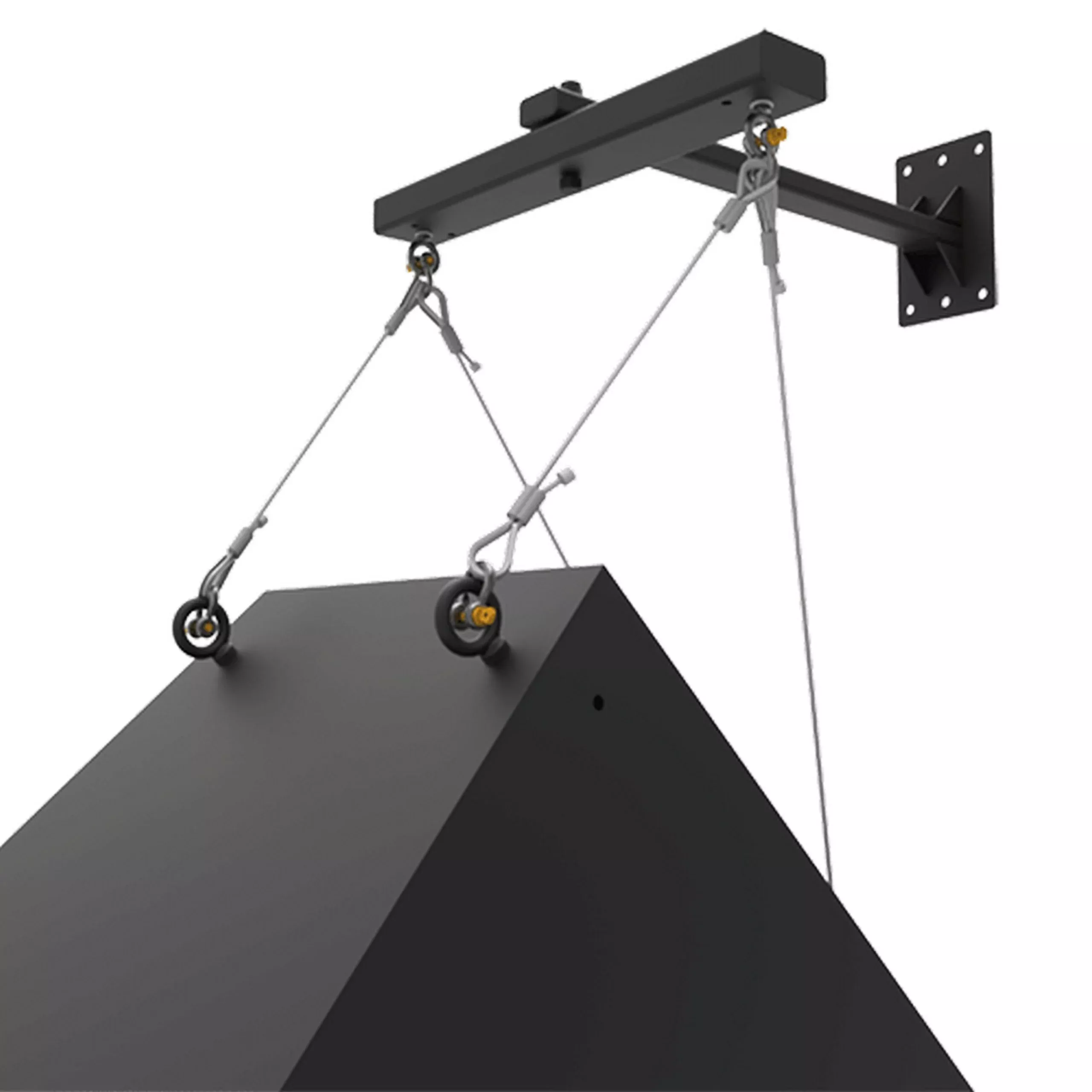

The Steerables SAS-100-WM suspends and aims loudspeakersfrom walls and other vertical structures. Loudspeaker cabinets equipped withrigging points can be suspended and aimed with unprecedented ease andprecision. Pan and tilt adjustments can be made or remade within seconds. TheSteerables unique Cross-Arm steering mechanism provides up to 360 degrees ofpan control while tilting is achieved either through the addition of a standardAllen Products U-Series bracket or Steerables Tilt Cable Kit (see respectivedata sheets for more details).

Key Features

• Suspends riggable loudspeakers from walls and Suspendsriggable loudspeakers from walls and other vertical surfaces
• Unique cross arm steering mechanism offers 360Unique crossarm steering mechanism offers 360 of pan control
• Significant reductions in installation and planning time
• Accommodates standard Allen Products U-SeriesbracketsAccommodates standard Allen Products U-Series brackets and Steerables
• Tilt Cable Kits
• Minimal mounting surface area required

Technical Specifications

Material
Structural steel alloy tube and plate
Finish
Powder Coat
Color
Textured black
Pan Rotation
360 horizontal swivel max
WLL
100 lbs./45 kg.
Design Factor
10:1 ratio based on10:1 ratio based on ultimate yield point
Shipping Weight
17 lbs./7.7 kg.
Pack Count
1 unit/carton
