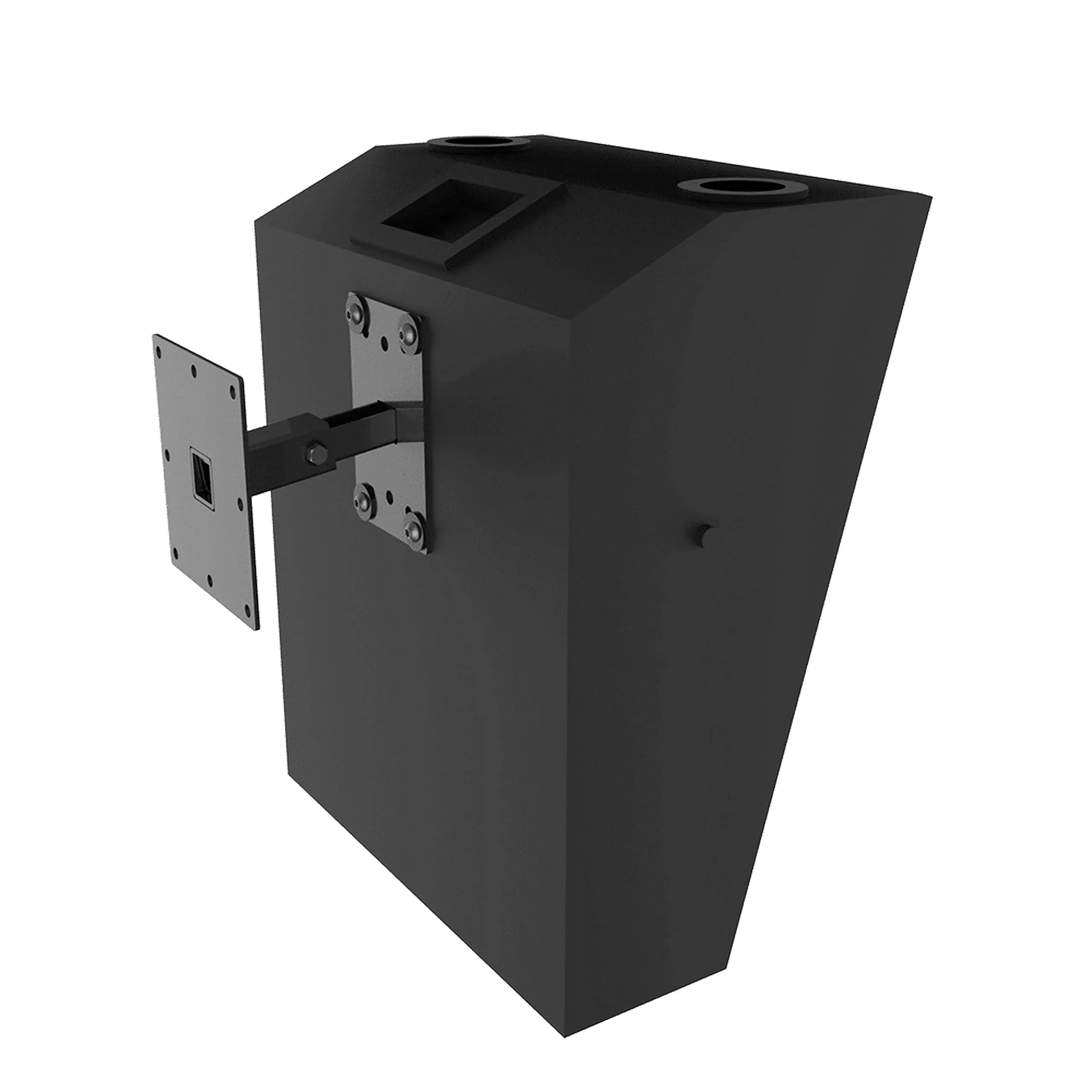

Adaptive Technologies WM-0-15-60 Rear Extendable Speaker Mount
The WM-015-60 wall mount is an excellent choice for variouswall mounting positions as well as 0 and 15 speaker tilt angles. The speakersare secured to standard VESA mounting hole patterns, 5” x 2.75” and 4” x 2.25”,located on the rear of the speaker cabinets. The speaker tilt angle can beselected from either 0 or 15. For 0 the wall mount tube is facing up, for15 the wall mount tube is facing down. This wall mount is equipped with a 3-positiontelescoping arm (5.06”, 6.05” and 7.05”). This same arm can be used to conductthe signal wire for a clean look.
Key Features
- Infinite locking adjustments
- Single man speaker installations
- Optional safety cables available
- 0 or 15 Degree Down-Tilt
- Conforms to multiple mounting hole patterns including 2 x 4-1/4and 2-3/4 x 5
Technical Specifications
Material
Steel Alloy Components
1 pc – Mounting Plate
Finish
Powder Coat
1 pc – Speaker Adapter
Color
Black
1 pc – Instruction Sheet
Tilt Rotation
15 max.
1 pc – Hardware Kit
WLL
60 lbs. (27.2 Kg) max.
Design Factor
7:1 ratio
Net Weight
2.2lbs (1Kg) each
Shipping Weight
2.5lbs (1.13Kg) each
