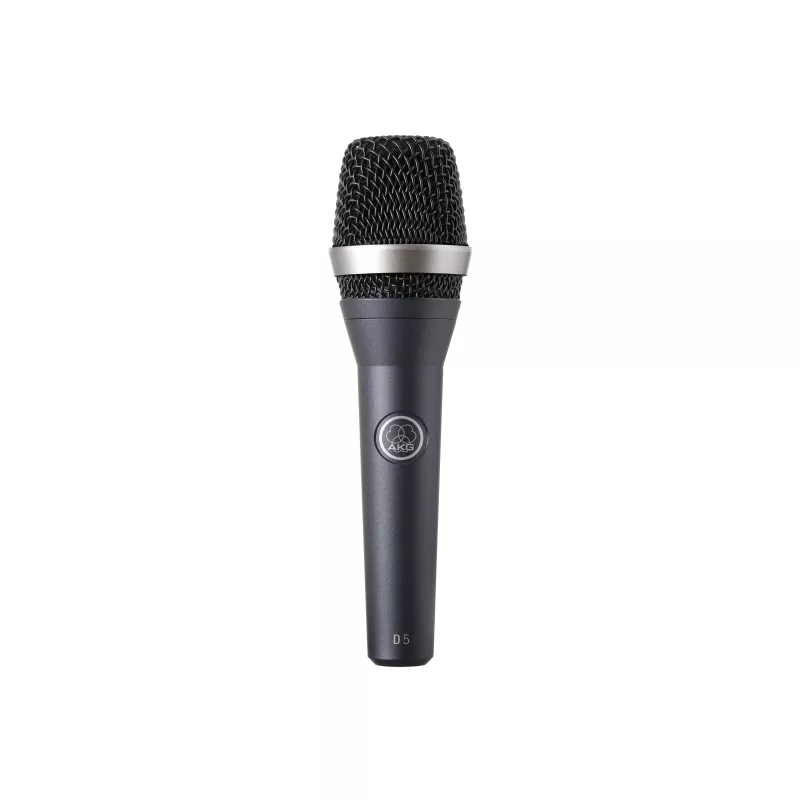

AKG D5 Professional Dynamic Vocal Microphone
The AKG D5 is a compact, hand-held dynamic microphone engineered for studio tracking and live vocal capture. Its supercardioid pattern and robust construction deliver consistent, articulate sound that translates reliably across recording sessions, mix-downs, and live applications where controlled vocal isolation is essential.
Design & Build
Built around a variable-thickness laminated Varimotion diaphragm, the D5 captures focused vocal articulation with minimal proximity effect coloration—critical for maintaining intelligibility and presence in dense arrangements. The supercardioid polar pattern provides tight rejection of off-axis sound, making it ideal for isolation recording where bleed from room ambience and nearby instruments must be minimized. Its rugged die-cast housing and spring-steel wire-mesh grille survive repeated session setups and transport, while the integrated dual shock mount isolates handling noise and vibration effectively during tracking.
Audio Performance
A frequency response of 20 Hz to 17 kHz captures the full tonal range required for natural vocal reproduction, with presence-peak characteristics that cut through dense mixes without sounding hyped or brittle. The microphone’s 147 dB SPL capacity handles powerful singers and high-output sources without distortion, while its 2.6 mV/Pa sensitivity and 600 Ohm electrical impedance ensure clean signal transfer to standard mixing consoles and audio interfaces, requiring no external power or special preamp treatment.
Key Features
- Supercardioid polar pattern for tight rejection of off-axis sound
- Variable-thickness laminated Varimotion diaphragm
- Frequency response: 20 Hz to 17 kHz
- Sensitivity: 2.6 mV/Pa
- SPL capacity: 147 dB
- Electrical impedance: 600 Ohms
- Recommended load impedance: 2000 Ohms
- Dual shock mount system
- Integrated pop filter
- Spring-steel wire-mesh grille
- Rugged die-cast housing
- Dynamic microphone (passive; no external power required)
The D5 combines proven engineering with practical durability, making it a reliable workhorse microphone for any producer or engineer prioritizing direct, controlled vocal capture across studio sessions and live settings.
