Heavy-duty mobility

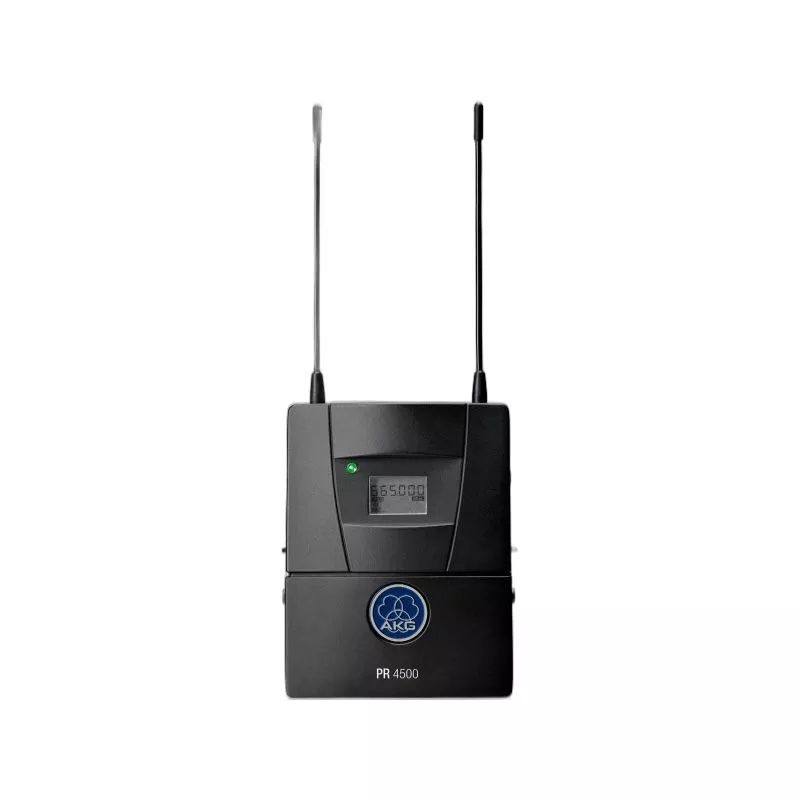

for ENG/EFP,event video and videography applications The PR4500 ENG is a reference wireless diversity camera receiver,providing maximum ease of use with an automatic setup function and scan of the radio frequency environment.
The outstanding audio quality with a very high signal to noise performance avoids any disturbing ground noise whilst recording. A separate headphone output provides a direct monitoring possibility and the three step LED audio meter shows signal quality.
All relevant system information is shown on a prominent illuminated display. Its precise battery life readout is a valuable advantage during demanding field work.
Auto setup and environment scan
for quick and easy setup
Up to 18 simultaneous channels
for safe channel management in huge productions
Technical Specification
| Audio |
| Audio Frequency bandwidth |
35 to 20000 Hz |
| Signal to Noise |
100 dB-A |
| THD at 1 kHz |
0.8 Prozent |
|
| Enhanced |
| Operating temperature range |
-10 to 55 Celsius |
| Radio Sensitivity |
-100 dBm |
|
| Radio |
| Switching bandwidth |
30 MHz |
| Recommended simultaneous channels |
60 |
| Number of selectable frequencies |
1220 (selectable in 25kHz steps) |
| Frequency Selection |
Selectable frequency in 25kHz steps |
| Wireless channels within device |
– |
| Radio Range (Line of Sight) |
100m (depending on antenna system) |
| Switchable RF Power |
no |
| Modulation |
FM |
| Encryption |
No encryption |
| Diversity |
True Diversity |
| Pilot Tone |
no |
|
| Antenna Interface |
| Amount |
2 |
| Type |
External Antenna fixed |
|
| Audio Outputs 1 |
| Amount |
1 |
| Gender |
Female |
| Contacts |
2-pin |
| Note |
Audio output for connection to camera |
|
| Audio Outputs 2 |
| Amount |
1 |
| Type |
Jack Stereo (1/8″) |
| Gender |
Female |
| Contacts |
3-pin |
| Note |
Audio output for connection to headphones |
|
| Battery 1 |
| Batterietype |
LR6 AA alkaline battery |
| Number of Batteries |
2 |
| Operating Time |
12 h |
|
| Battery 2 |
| Batterietype |
AKG BP 4000 |
| Compatibel Charging System |
Ladestationen |
| Number of Batteries |
1 |
| Operating Time |
14 h |
|
| Battery 3 |
| Batterietype |
HR 6 AA (NiHM) rechargeable battery |
| Number of Batteries |
2 |
| Operating Time |
14 h |
|
| Design |
|
| Dimensions / Weight |
| Length |
70 mm |
| Width |
25 mm |
| Height |
91 mm |
|
