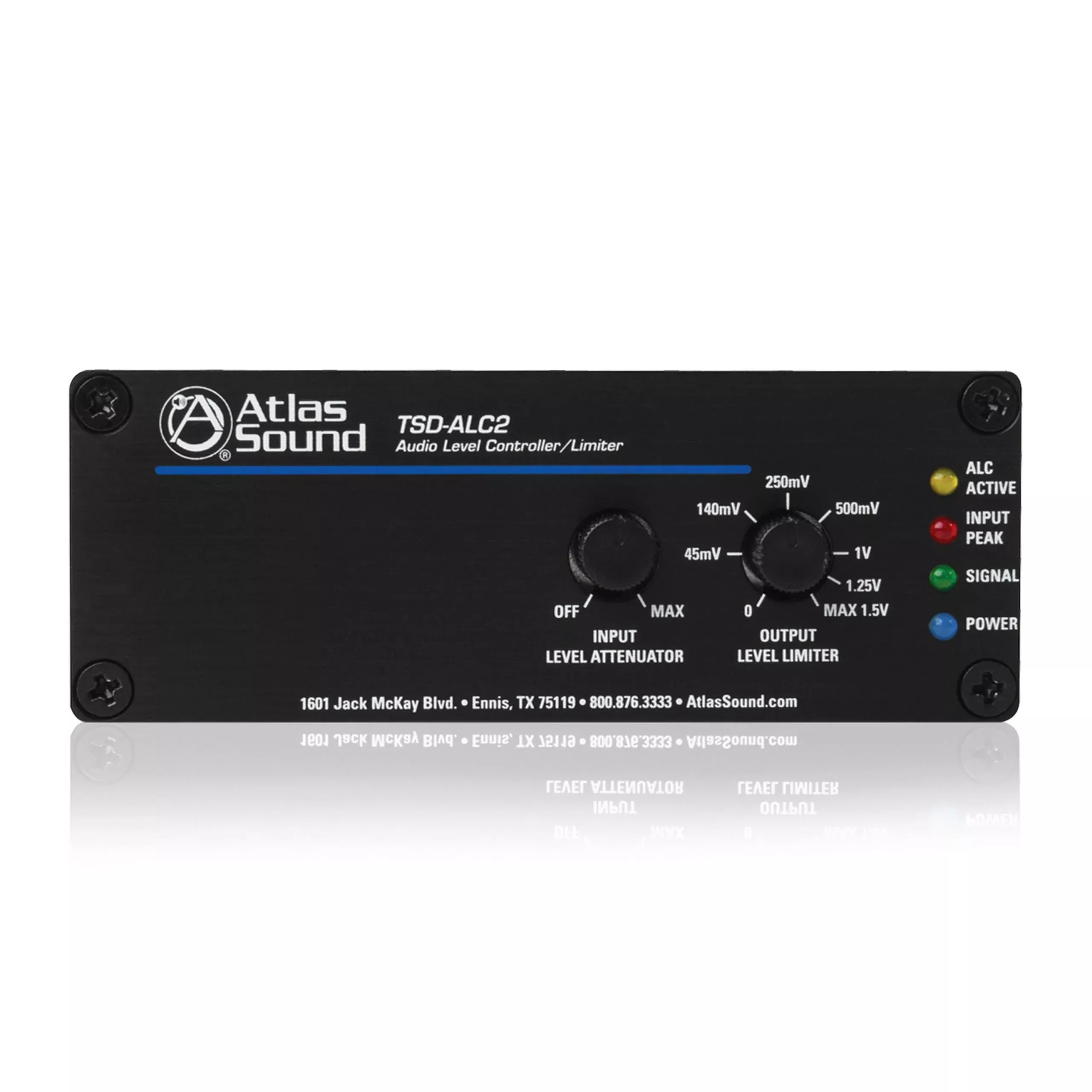

Atlas Sound TSD-ALC2 Audio Level Controller/Limiter

Atlas Sound TSD-ALC2 Audio Level Controller/Limiter

The AtlasIEDTSD-ALC2 is an automatic 2-channel audio level controller/limiter that allowsdesigners and installers the ability to set predetermined maximum sourcelevels. The TSD-ALC2 is great for installations with multiple program sourcesincluding satellite receivers, mp3 players, etc. that typically have vastoutput level irregularities. With the TSD-ALC2 inserted in line with these sources,the audience will not be distracted during high volume commercial breaks orwhen different inputs are selected. Retail stores, restaurants, sports bars,hotels, event centers, and other facilities can all benefit from improved soundwhen the TSD-ALC2 is integrated.

Key Features

• Stereo AutoLevel Control
• UnbalancedRCA Input and Output
• ThresholdLevel Adjustment
• Ramp SpeedSelection
• Output GainControl
• SecurityCovers Included for All Front Panel Controls
• EnergyEfficient
• CompactChassis Design
• Power SupplySold Separately

TechnicalSpecifications

Input Type
(2)Unbalanced, RCA, Left & Right
Output impedance
150Unbalanced
Output Level
Adjustablefrom 0V – 1.4V, Hard Limit
Input Level Attenuator
(1)Removable Knob w/ Security Cover
Indicators
Input:Green,Input Peak:Red, ALC Active:Yellow, Power:Blue
Power Consumption
1.4 Watts
Chassis Material
Aluminum
Chassis Color
Black
Height
1.5″(39mm)
Depth
2.75″(70mm)
