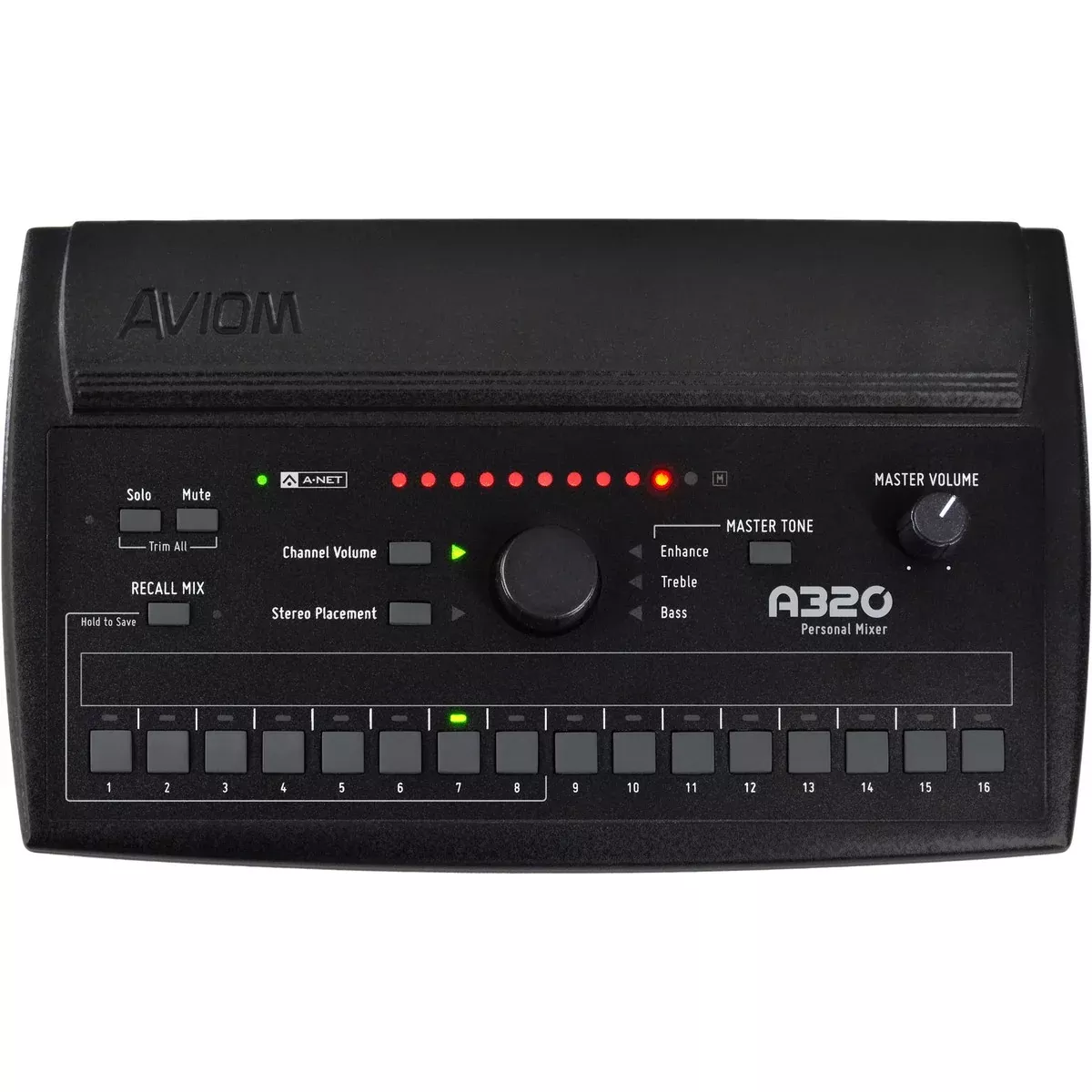

Aviom A320 Personal Mixer
The A320 Personal Mixer gives performing and recording musicians simple, intuitive control over their monitor mixes. With many of the features of the award-winning A360 Personal Mixer, the A320 gives musicians the ability to get clear, musical monitor mixes every time they play. Ideal for use with in-ear monitors and headphones, the A320 gives musicians powerful control over their mix, while also preserving the simplicity required for use while performing.
Key Features
- 16 mono or stereo sources
- 32-channel mix engine
- Per-channel volume and stereo placement
- Eight customizable mix presets
- Three-band master tone controls optimized for in-ear monitors
- Per-channel solo and mute
- Compatible with existing Aviom personal mixing systems
Technical Specifications
- Audio Output: 1/4″ TRS stereo, headphone or line level
- Stereo Mix Output, Headphone/Line:
- Tip: Audio Left
- Ring: Audio Right
- Sleeve: Ground
- A-Net I/O:
- Input: 1 A-Net In, RJ45 connector
- Supports: Pro16 and Pro16e
- D/A Conversion: 44.1/48kHz, 24-bit
- Stereo Operation:
- Mode: Stereo Link, per channel pair
- Setting: Set at the input module
- Control: Variable pan per mono channel or pan/spread per stereo channel pair
- Headphone Output: 275 mW per side into 50 Ohms (both sides driven)
- Output Impedance: 5 Ohms
- Frequency Response: 3Hz-22kHz +0.2dB/-3dB at 50 Ohms
- THD +N: <0.003%
- Output Voltage for Personal Mixers: 24VDC, 0.5 amp
- Transmission: Transmitted over the Cat-5e cable
- Signal to Noise (unweighted): -106dB (measured with zero data into all channels)
- Latency: 0.880 msec (measured from analog input to analog output)
- Pro16e A-Net:
- Cable: Use Cat-5e (or better) cable
- Maximum Distance: 400 ft (122 m) between devices
- Power Support: Supports Power Over A-Net
- Cat-5 Cable: Use shielded Cat-5e (or better) cable to stay below the CISPR 22 Class B, ICES-003, and FCC 47 CFR Part 15 Class B emissions limits.
- Power:
- Requirement: 24 VDC, 0.5 amp
- Supply Method: Power is supplied over the Cat-5 cable when connected to an Aviom A-Net Distributor
- Dimensions: 10.26″ (260.6 mm) wide x 6.14″ (155.95 mm) deep x 1.91″ (48.51 mm) high
- Weight: 1.3 lb. (0.59 kg)
- Options: MT-1a Mic Stand Mount
Installation / Use Cases
- Creating personal monitor mixes with a personal mixer for performing and recording musicians
- Using in-ear monitors and headphones for clear, musician-controlled monitoring during live performance
- Adjusting per-channel volume and stereo placement for customized monitor balance
- Saving and recalling customizable mix presets for repeatable rehearsal and stage setups
- Integrating into existing Aviom personal mixing systems using A-Net connectivity
- Building simple, intuitive monitor workflows for musicians who need quick control while performing
Package Contents
- Aviom A320 Personal Mixer
