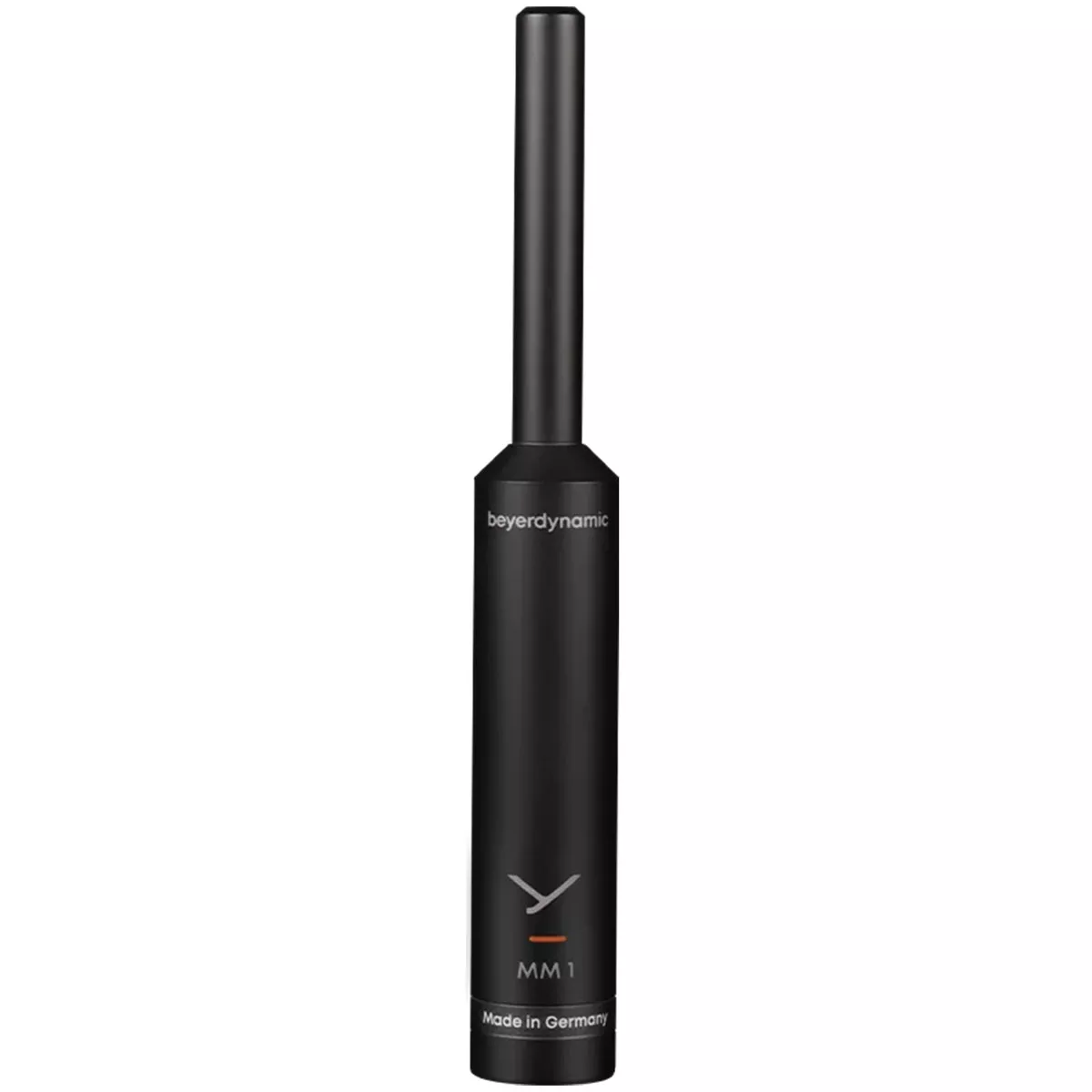

Beyerdynamic MM 1 Condenser Measurement Mic

Condenser measurement microphone (omnidirectional).

• Ideal for measuring the acoustics of various surroundings
• Linear frequency response at 90 (diffuse field calibrated)
• Individual calibration data available for 0 and 90 free-field measurement
• Slimline housing for minimised effect on the acoustic surroundings
• Handmade in Germany

The MM 1 measurement microphone can be used anywhere that requires precise results. Featuring an omnidirectional polar pattern, this microphone is ideal for measuring studio spaces, PA systems and sound reinforcement systems. When used in combination with a spectrum analyser, it can monitor not only frequency response measurements, but also the sound pressure level of speakers. The MM 1 also provides a valuable service when it comes to measuring audio signals for research, development, and industry.

The MM 1 boasts impressively high measurement precisionboth live and in the studio. We manufacture these microphones within an extremely narrow tolerance with a deviation of +/- 1.5 dB between 50 Hz and 16 kHz. This is made possible by our specialists checking the frequency response of each individual microphone by hand.

A high-quality back electret condenser capsule serves as pressure receiver in the MM 1. The microphone is diffuse field calibrated and demonstrates a linear frequency response at 90. This makes it easy to measure studio spaces, for example, without the need for too much preparation.

The MM 1 is anything but a one trick pony. It delivers good results as an unconventional alternative for instrument recordingsperfect for spontaneously recording song ideas.

Handmade at the company headquarters, the MM 1 stands for beyerdynamics high manufacturing quality. Measurement-relevant components such as the mounting board are manufactured in-house and individually calibrated.
