Blustream Advanced HDMI Signal Manager with Audio Return

Blustream Advanced HDMI Signal Manager with Audio Return

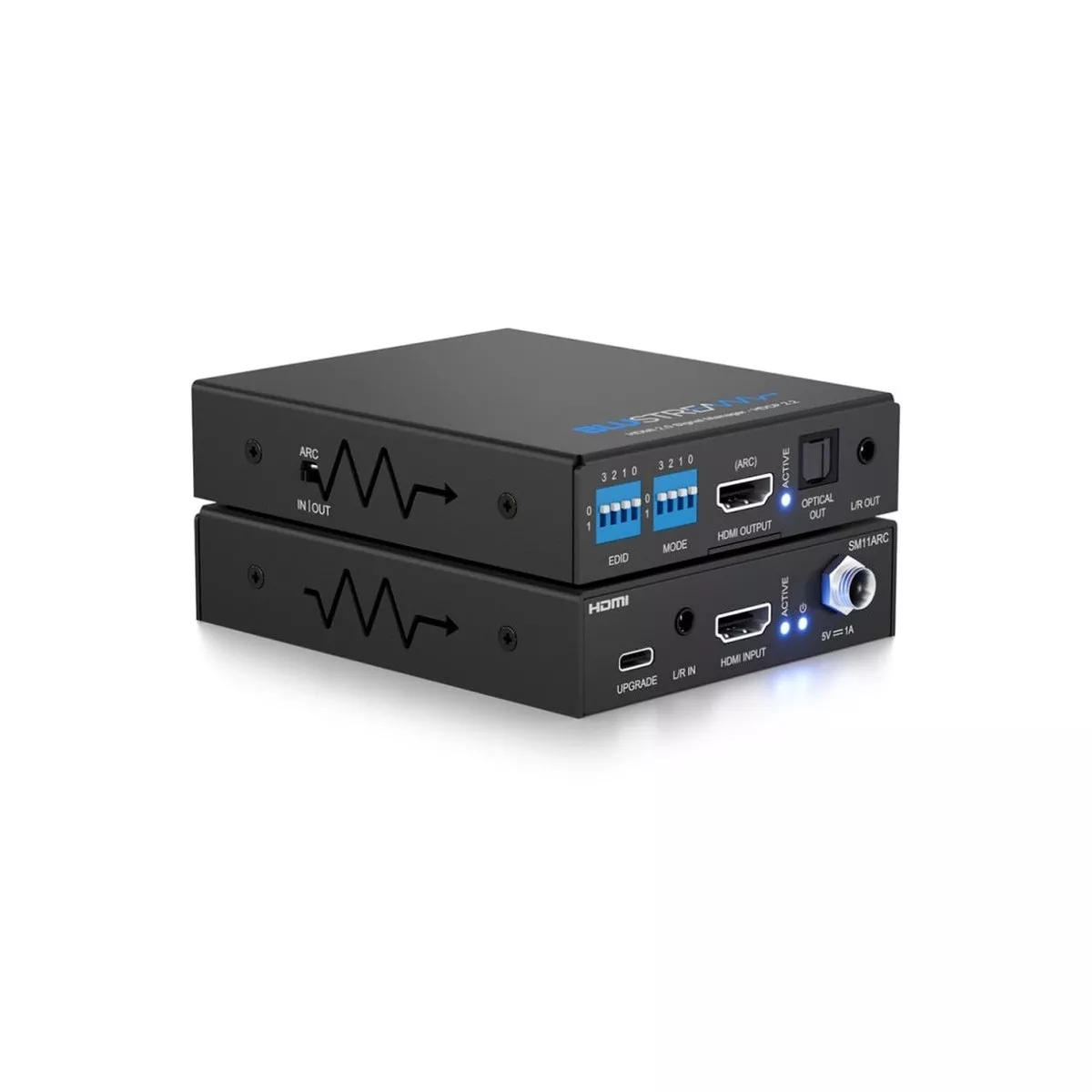

The SM11ARC is an advanced HDMI signal-management tool designed to resolve EDID, HDCP, handshaking, clock-stretching, and compatibility problems in professional AV installations. It supports HDMI 2.0 video up to 4K UHD at 60Hz 4:4:4 with HDR and HDCP 2.3.

The unit can operate as an HDMI audio embedder or de-embedder. Analog stereo audio can replace the original HDMI audio, while audio from the HDMI signal can be extracted simultaneously through analog and optical outputs.

ARC support allows audio from a compatible display to be returned through the HDMI output connection and extracted through the optical S/PDIF port. This makes the SM11ARC useful for troubleshooting, audio integration, and installations where display audio must be routed to an external system.

Key Features

• Advanced HDMI signal and compatibility manager
• Helps resolve EDID, HDCP, and handshaking problems
• HDMI 2.0 support
• Supports 4K UHD 60Hz 4:4:4
• HDR support
• HDCP 2.3 compliant
• HDMI audio embedding
• HDMI audio de-embedding
• Analog stereo audio input
• Analog stereo and optical audio outputs
• ARC audio extraction through optical S/PDIF
• Supports up to 5.1-channel ARC audio
• Multichannel and object-based audio pass-through
• Advanced EDID management
• Compact installation-friendly enclosure
