CAD Audio STAGE7 7-Piece Drum Microphone Pack

CAD Audio STAGE7 7-Piece Drum Microphone Pack

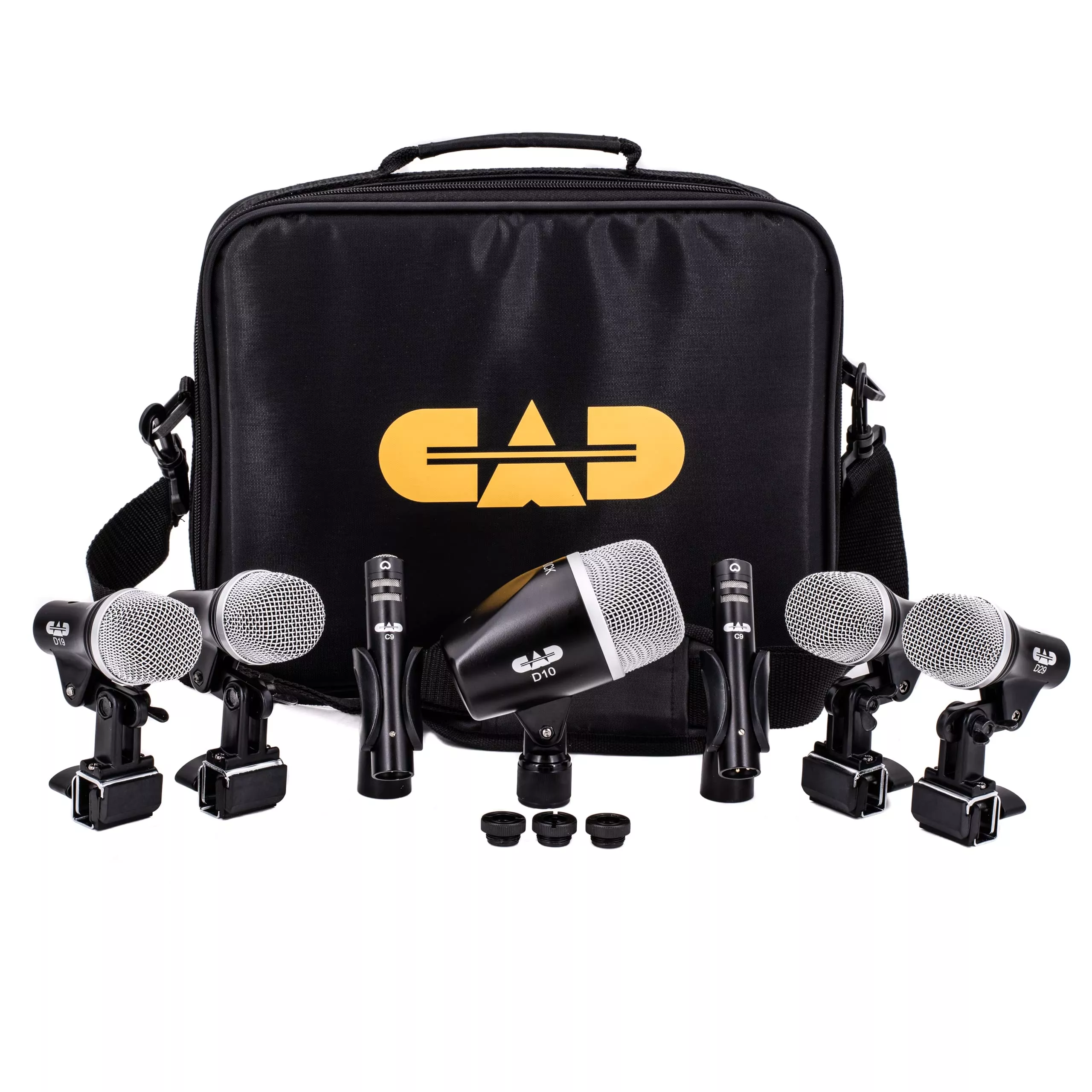

7-PIECE DRUM MICROPHONE PACK – THREE D29, TWO C9, ONE D19, ONE D10

Key Features

• 7 Piece Drum Mic Pack
• Includes three D29 dynamic tom mics with integrated drum clips
• One D19 dynamic snare mic with integrated drum clip
• One D10 dynamic kick drum mic with clip
• Two C9 overhead condensers with clips
• Protective carrying case included

Technical Specifications

C9 Cardioid Condenser Instrument Microphone
Operating Principle
Condenser
Polar Pattern
Cardioid
Frequency Response
40Hz -13KHz
Sensitivity
(2.2mV) @ 1 Pa
Impedance
150 ohms
Max SPL
140dB
Self Noise
27dBA
Power Requirements
P12, P24, P48, 2.2mA
Weight
1.12oz
RF Immunity
Meets or exceeds EN55103-2, E1-E4
RoHS
Compliant
D29 Cardioid Dynamic Percussion Microphone
Operating Principle
Moving-coil dynamic
Polar Pattern
Cardioid
Frequency Response
90Hz -13KHz
Sensitivity
-53dBV (2.2mV) @ 1 Pa 90
Impedance
560 ohms
Weight
6.5oz
RF Immunity
Meets or exceeds
EN55103-2, E1-E4
RoHS
Compliant
D19 Supercardioid Dynamic Percussion Microphone
Operating Principle
Moving-coil dynamic
Polar Pattern
Supercardioid
Frequency Response
90Hz -14KHz, -6dB
Sensitivity
-56dBV (1.6mV) @ 1 Pa 9
Impedance
300 ohms
Weight
6.5oz
RF Immunity
Meets or exceeds
EN55103-2, E1-E4
RoHS
Compliant
D10 Cardioid Dynamic Kick Drum Microphone
Operating Principle
Moving-coil dynamic
Polar Pattern
Cardioid
Frequency Response
50Hz -16KHz
Sensitivity
67dBV (0.45mV) @ 1 Pa 90
Impedance
60 ohms
Weight
12.75oz
RF Immunity
Meets or exceeds
EN55103-2, E1-E4
RoHS
Compliant
