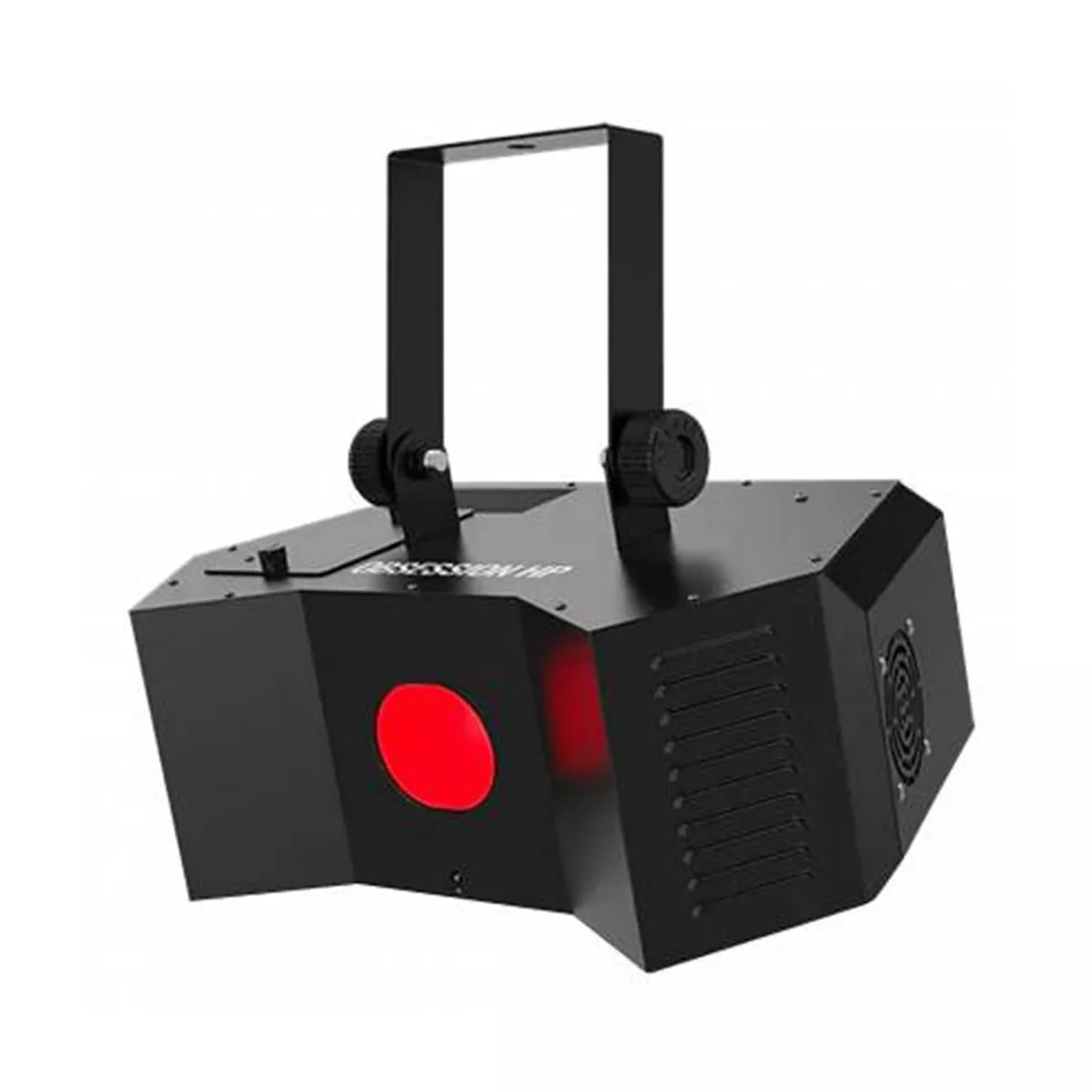

Create eye-popping, animated gobo light shows with Obsession HP, a compact LED effect light fitted with a 100W LED that projects multi-coloured, rotating gobos. Obsession HP’s design power and flexibility reaches new heights because gobos are interchangeable and the onboard mirror dish and separate colour and gobo wheels easily generate complex lighting looks. Generate a synchronized show in Master/Slave mode with up to 2 units and save time running cables and extension cords by power linking multiple units. Obsession HP is compatible with IRC-6 for flexible control over all features and fits best in the CHS-40 VIP Gear Bag, both sold separately.
Highlights:
- Compact LED effect light fitted with a 100W LED projects multi-coloured, rotating gobos
- Separate colour and gobo wheels allow for creative programming
- Includes 10 popular holiday gobos
- Compatible with IRC-6 for flexible control over all features
- Save time running cables and extension cords by power linking multiple units
What’s Included:
- Obsession HP
- Power cord
- Quick Reference Guide
Specifications:
- DMX Channels: 2 or 8
- DMX Connectors: 3-pin XLR
- Colors: 6 + white, split colors, continuous scroll at variable speeds
- Gobos: (7 metal), rotating, indexing, interchangeable, continuous scroll at variable speeds
- Light Source: 1 LED (cool white) 100 W, (4 A), 50,000 hours life expectancy
- Strobe Rate: 0 to 20 Hz
- PWM Frequency: 4 KHz
- Coverage Angle: 116 degrees
- Power Linking: 3 units @ 120 V; 6 units @ 230 V
- Input Voltage: 100 to 240 VAC, 50/60 Hz (auto-ranging)
- Power and Current:
- 176 W, 2.2 A @ 120 V, 60 Hz
- 171 W, 1.3 A @ 230 V, 50 Hz
- Gobo Size: 18 mm outside, 12 mm image, 5 mm max thickness
- Weight: 10.2 lb (4.7 kg)
- Size: 14.96 x 8.26 x 12 in (380 x 233 x 305 mm)
- Approvals: CE
- Optional Controller: IRC-6
