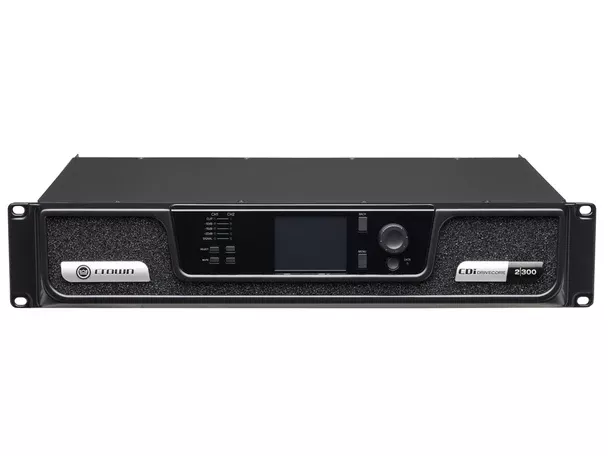

Crown Audio CDi 2|300 Analog input Power Amplifier

Original price was: $1,078.80.Current price is: $815.74.

Sale!
SKU: NCDI2X300-U-US Category:
Share

The CDi DriveCore Series is an evolution in amplification, providing an impressive mix of high-performance; rich feature set, and competitive cost.  Using technology derived from our flagship Installed Sound amplifier (Crown DriveCore Install series), the CDi DriveCore 2|300 offers streamlined functionality to work in almost any small/medium sized installation such as restaurants, retail stores, and more.  Designed for ease-of-use in a variety of applications, the 2|300 is a 2-channel amp that includes network control/monitoring, high-level DSP, front-panel interface, and support for driving up to 100Vrms speaker loads without requiring a transformer.  The entire CDi DriveCore line comes pre-loaded with JBL speaker tunings to help make installations quicker and easier.

Features

  • DriveCore Technology – Crown’s proprietary DriveCore technology eliminates hundreds of components within each amplifier, reducing the variability of component values, increasing reliability, resulting in incredible audio fidelity from an efficient design.
  • Network Control and Monitoring – Through Harman’s HiQnet Audio Architect software, the CDi DriveCore can be controlled, configured, and monitored through standard TCP/IQ network.
  • DSP – On-board Digital Signal Processor in each amplifier allows for custom configuration
    • Input Router
    • Input Delay – Up to 1000ms
    • Input Parametric EQ – 8 band
    • Crossover
    • Output Parametric EQ – 8 band
    • Output Delay – Up to 100ms
    • LevelMAX™ Limiter
  • BLU link (BL models only) – Both receive and send channels over HARMAN’s 256 channel, fault-tolerant audio BUS, BLU link
  • Direct Drive 70/100Vrms Output – Each output channel is capable of provide either 70V or 100V for high impedance applications.
  • Front-Panel Interface – Completely configure the amplifier using an intuitive front-panel interface.
  • GPIO/AUX Port – Recall presets, mute channels, monitor faults, power on/off the amplifier, and more through a combined GPIO/AUX Port.

Feature Comparison

CDi DriveCore Model Channels Network Control DSP Control Port BLU link
2|300 2 Y Y Y
2|300BL 2 Y Y Y Y
4|300 4 Y Y Y
4|300BL 4 Y Y Y Y
2|600 2 Y Y Y
2|600BL 2 Y Y Y Y
4|600 4 Y Y Y
4|600BL 4 Y Y Y Y
2|1200 2 Y Y Y
2|1200BL 2 Y Y Y Y
4|1200 4 Y Y Y
4|1200BL 4 Y Y Y Y

Output Power: Dual Mode – All Channels Driven

CDi DriveCore Model Channels 2Ω 4Ω 8Ω 16Ω 70Vrms 100Vrms
2|300 / 2|300BL 2 150W 300W 300W 150W 300W 300W
4|300 / 4|300BL 4 150W 300W 300W 150W 300W 300W
2|600 / 2|600BL 2 300W 600W 600W 300W 600W 600W
4|600 / 4|600BL 4 300W 600W 600W 300W 600W 600W
2|1200 / 2|1200BL 2 850W 1200W 1200W 600W 1200W 1200W
4|1200 / 4|1200BL 4 850W 1200W 1200W 600W 1200W  1200W

Minimum Guaranteed Power (1kHz, all channels driven, max distortion 0.5%, duration 0.5 seconds, 120 – 240Vrms – 50/60Hz)

Output Power: Bridge Mono Mode – All Channels Driven

CDi DriveCore Model 4Ω 8Ω 16Ω 140Vrms 200Vrms
2|300 / 2|300BL 300W 600W 600W 600W 600W
4|300 / 4|300BL 300W 600W 600W 600W 600W
2|600 / 2|600BL 600W 1200W 1200W 1200W 1200W
4|600 / 4|600BL 600W 1200W 1200W 1200W 1200W
2|1200 / 2|1200BL 1200W 2400W 2400W 2400W 2400W
4|1200 / 4|1200BL 1200W 2400W 2400W 2400W 2400W

Minimum Guaranteed Power (1kHz, all channels driven, max distortion 0.5%, duration 0.5 seconds, 120 – 240Vrms – 50/60Hz)
