Home » Shop » Pro Audio » DAS AUDIO ALTEA-715

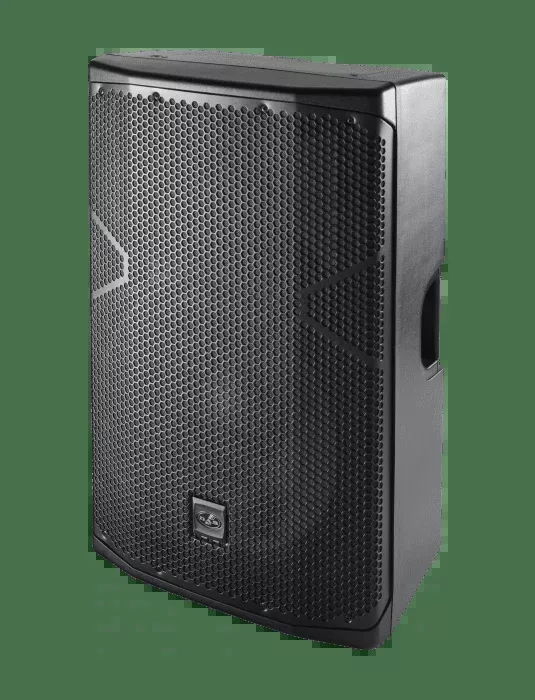

DAS AUDIO ALTEA-715

Original price was: $363.00.Current price is: $240.61.

Sale!
SKU: ALTEA-715 Category:
Share


ALTEA-715

P/N. 10404820

Features

2-way, full range system
Lightweight multipurpose system 15? FV series bass loudspeaker 1? FEM optimized compression driver
Enclosure design allows for stage monitor use
Built-in rigging points

Applications

Concerts and corporate A/V
Portable and live clubs
Concert halls, theaters and auditoriums
Houses of worship

The Altea-715 passive system allow users to choose the powering option they prefer and is designed for use with external amplification and outboard DSP. This system benefits from the high-performance transducers include the DAS 15FV4 loudspeaker, which provides accurate low frequency reproduction with a deep, powerful bass.

High frequencies are handled by the brilliant M-28 FEM optimized compression driver with 1? exit providing exceptional performance and smooth reproduction.

Performance
Frequency Range (-10 dB) 60 Hz – 20 kHz
Horizontal Coverage (-6 dB) 90º
Vertical Coverage 60º
Nominal Impedance 8 ohms
RMS Power Handling 500 W
Peak Power Handling 2000 W
On-axis Sensitivity 1W/1 m 99 dB SPL
Maximum Peak SPL at 1 m 132 dB
Recommended Amplifier PA-1500
Recommended Processor DSP-226
Connectors
Audio Input Connector 1 x speakON NL4
Audio Output Connector 1 x speakON NL4
Enclosure
Enclosure Construction Polypropylene
Enclosure Geometry Trapezoidal
Rigging M8 Rigging Points
Color Black
Depth 380 mm (15,0 in)
Dimensions ( H x W x D ) 710 x 440 x 380 mm
28,0 x 17,3 x 15,0 in
Net Weight 18,8 kg ( 41,4 lb )
Components
LF Driver 15FV
HF Driver M-28
Shipping
Carton Dimensions ( H x W x D ) 805 x 530 x 445 mm
31,7 x 20,9 x 17,5 in
Shipping Weight 23,3 kg ( 51,5 lb )
