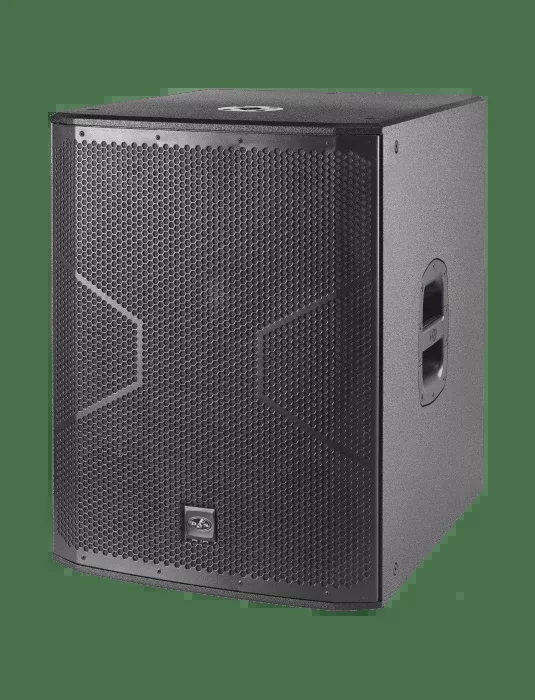

DAS AUDIO ALTEA-718

Original price was: $570.60.Current price is: $336.20.

Sale!
SKU: ALTEA-718 Category:
Share


ALTEA-718

P/N. 10404980

Features

Companion subwoofer system
High efficiency 18? loudspeaker
Compact Birch plywood enclosure
Pole mount socket for satellite systems

Applications

Concerts and corporate A/V
Portable and live clubs
Theaters and auditoriums
Houses of worship

The ALTEA-718 is powerful subwoofer system designed to provide extended bass response for the ALTEA full-range cabinets. At the heart of the system is a DAS 18FW bass loudspeaker. This loudspeaker incorporates a FEM optimized high-efficiency speaker design and an extended 3? voice coil for long excursion. Cooling is assured thanks to the 18FW´s vented pole piece and abundant apertures in the speaker´s back plate keeping power compression to a minimum while providing high acoustic output over extended periods.The compact Birch plywood cabinet is protected with a tough ISO-flex outer coating for long years of use in portable systems.

Performance
Frequency Range (-10 dB) 45 Hz – 138 Hz
Nominal Impedance 8 ohms
RMS Power Handling 600 W
Peak Power Handling 2400 W
On-axis Sensitivity 1W/1 m 98 dB SPL
Maximum Peak SPL at 1 m 134 dB
Recommended Amplifier PA-1500
Recommended Processor DSP-226
Connectors
Audio Input Connector 1 x speakON NL4
Audio Output Connector 1 x speakON NL4
Enclosure
Enclosure Construction Birch Plywood
Enclosure Geometry Rectangular
Rigging M10 Rigging Points
Finish ISO-flex Paint
Color Black
Depth 650 mm (25,6 in)
Dimensions ( H x W x D ) 720 x 545 x 650 mm
28,4 x 21,5 x 25,6 in
Net Weight 40,5 kg ( 89,3 lb )
Components
LF Driver 18FW
Shipping
Carton Dimensions ( H x W x D ) 820 x 600 x 700 mm
32,3 x 23,6 x 27,6 in
Shipping Weight 44,5 kg ( 98,1 lb )
