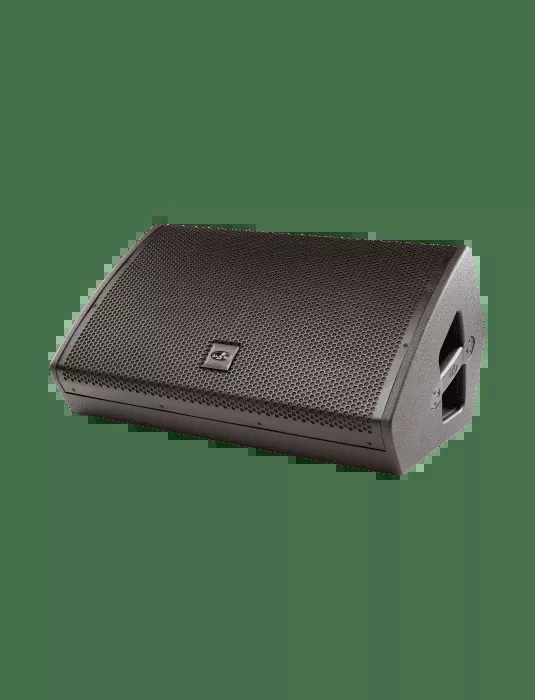

DAS AUDIO EVENT-M210A-115

Original price was: $1,679.99.Current price is: $856.40.

Sale!
SKU: EVENT-M210A-115 Category:
Share


EVENT-M210A-115

P/N. 10429220

Features

Light-weight Class D amplifier topology
High-end DSP chipsets
Special monitor Easy-DSP™ Interface
Quality Neutrik® connectors
Top grade Birch cabinet construction
Durable ISO-flex finish
Proprietary injected aluminum HF waveguide
DAS M-60 compression driver

Applications

House of worship
Theatres, auditoria and performing arts centers
Live music clubs
Corporate A/V
Live sound touring/Rental services
The EVENT-M210A is a three-way stage monitor in a double 10” “dual-band” configuration providing a wide frequency range. The DAS loudspeaker units have been teamed up with a single M-60 compression driver and purpose-designed injected aluminum high frequency waveguide. The EVENT-M210A wedge is powered by a three channel Class D amplifier which provides 360 Wpeak per channel. The amp´s rear panel includes quality Neutrik® XLR and powerCON connectors, status LEDS to facilitate setup.
Performance
Frequency Range (-10 dB) 70 Hz – 20 kHz
Horizontal Coverage (-6 dB) 60º
Vertical Coverage 20ºUp/30ºDown
Maximum Peak SPL at 1 m 132 dB
Electronics and Connectors
Nominal Amplifier Power LF (continuous) 180 W
Nominal Amplifier Power LF (peak) 360 W
Nominal Amplifier Power MF (continuous) 180 W
Nominal Amplifier Power MF (peak) 360 W
Nominal Amplifier Power HF (continuous) 180 W
Nominal Amplifier Power HF (peak) 360 W
Input Type Balanced
Input Impeadance 20 kohms
Input Sensitivity 6.2 V (+18 dBu)
Audio Signal Input Connector 1 x Female XLR
Audio Signal Loop Thru Connector 1 x Male XLR
AC Output Connector powerCON NAC3FCB
Current Draw 230 V / 115 V -/3.0 A
Enclosure
Enclosure Construction Birch Plywood
Enclosure Geometry Trapezoidal
Rigging Captive Rigging System
Finish ISO-flex Paint
Color Black
Dimensions ( H x W x D ) 340 x 650 x 460 mm
13,4 x 25,6 x 18,1 in
Net Weight 23,5 kg ( 51,8 lb )
Components
LF Driver 10MI4
MF Driver 10MI4
HF Driver M-60
Horn/Waveguide BC-632
Shipping
Carton Dimensions ( H x W x D ) 740 x 370 x 490 mm
29,1 x 14,6 x 19,3 in
Shipping Weight 26,0 kg ( 57,3 lb )
