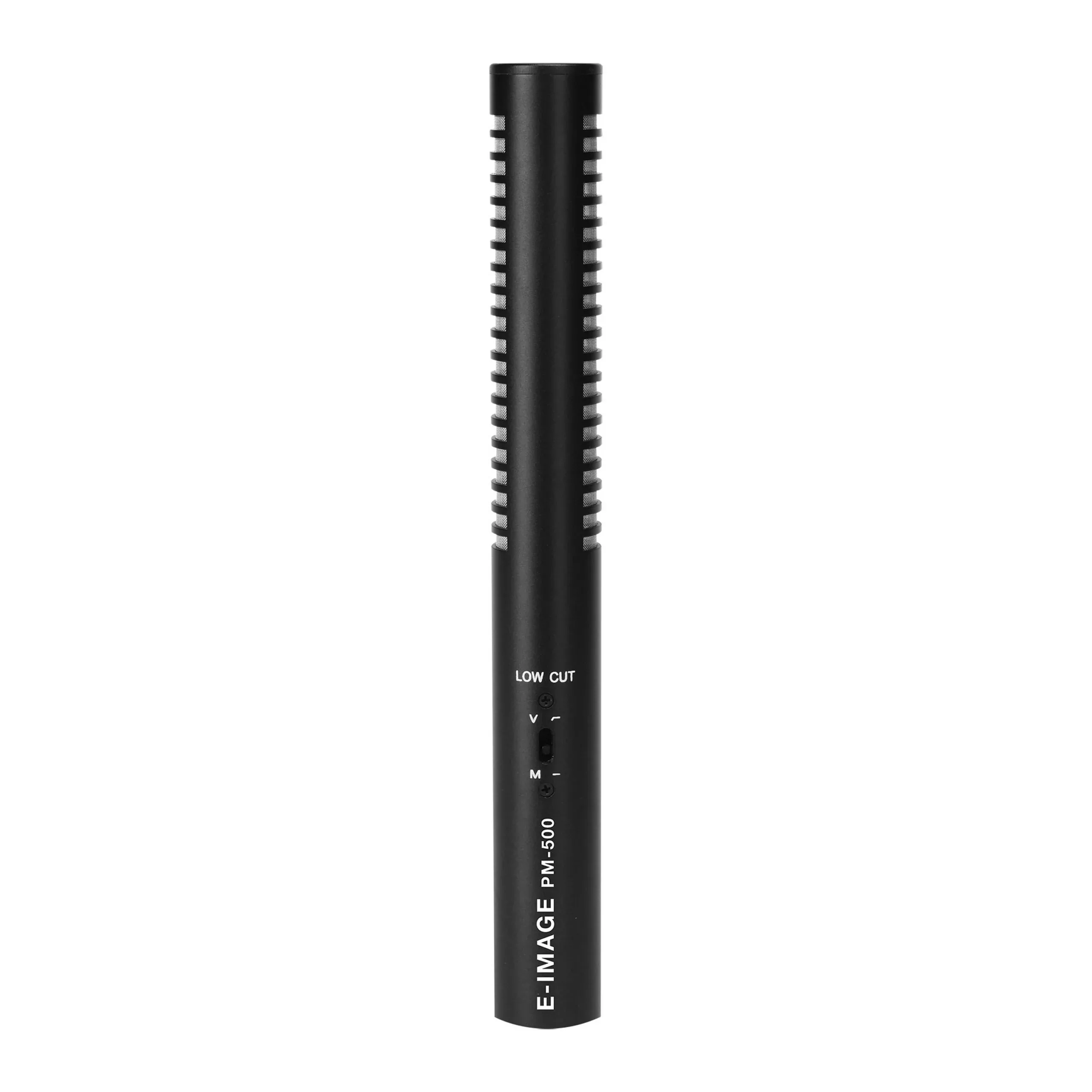

E-Image PM-500 Hyper-Cardioid Shotgun Microphone

E-Image PM-500 Hyper-Cardioid Shotgun Microphone

Designed for film, radio, and television, the PM-500Hyper-Cardioid Shotgun Microphone from E-image is a short shotgun interferencemicrophone optimized for outdoor recording. It offers excellent directionalcontrol in a compact design with a balanced range of frequency response. ThePM-500 Hyper-Cardioid Shotgun Microphone features a hyper-cardioid polarpattern, a low-noise floor, and an all-brass body. The PM-500 Hyper-CardioidShotgun Microphone from E-image is a lightweight directional shotgunmicrophone. It can be used to capture audio in various environments for speechand audio applications such as feature film, broadcast TV, or sound for videoproductions.

Key Features

• For Film, Radio, Television
• Hyper-Cardioid Pattern
• All-Metal Body, Black Finish
• 40Hz-16kHz Frequency Response
• Includes Foam Windscreen
• Built-in low-frequency cutoff switch

Technical Specifications

Audio Output
XLRM
Bass
180Hz 12dB
Dimensions
21-182mm
Element
Back Electret Condenser
Fixture Weight
105g
Frequency Response
40Hz-16kHz
Impedance
Output: 500 OHMS -20% (at 1kHz)
Max. Range
Max Input SPL: 130dB (T.H.D?1% at 1kHz)
Open CircuitSensitivity
-38dB-3dB (1dB=1V/Pa at 1kHz)
Phantom Power Requirements
48V DC, 2mA
Polar Pattern
Hyper-cardioid
Signal-To-Noise-Ratio
70dB (1KHz at 1Pa)
Switch
Smooth High-Pass Filtering
UPC Code
847983029105
Shipping Weight (lbs)
2
Shipping Dimensions(in)
14 x 8 x 4
Product Weight (lbs)
1.39
What’s Included
1x E-Image PM-500 Shotgun Microphone
1x Foam Windscreen
1x Mic Stand Clip with Threaded 3/8” Female Mount
