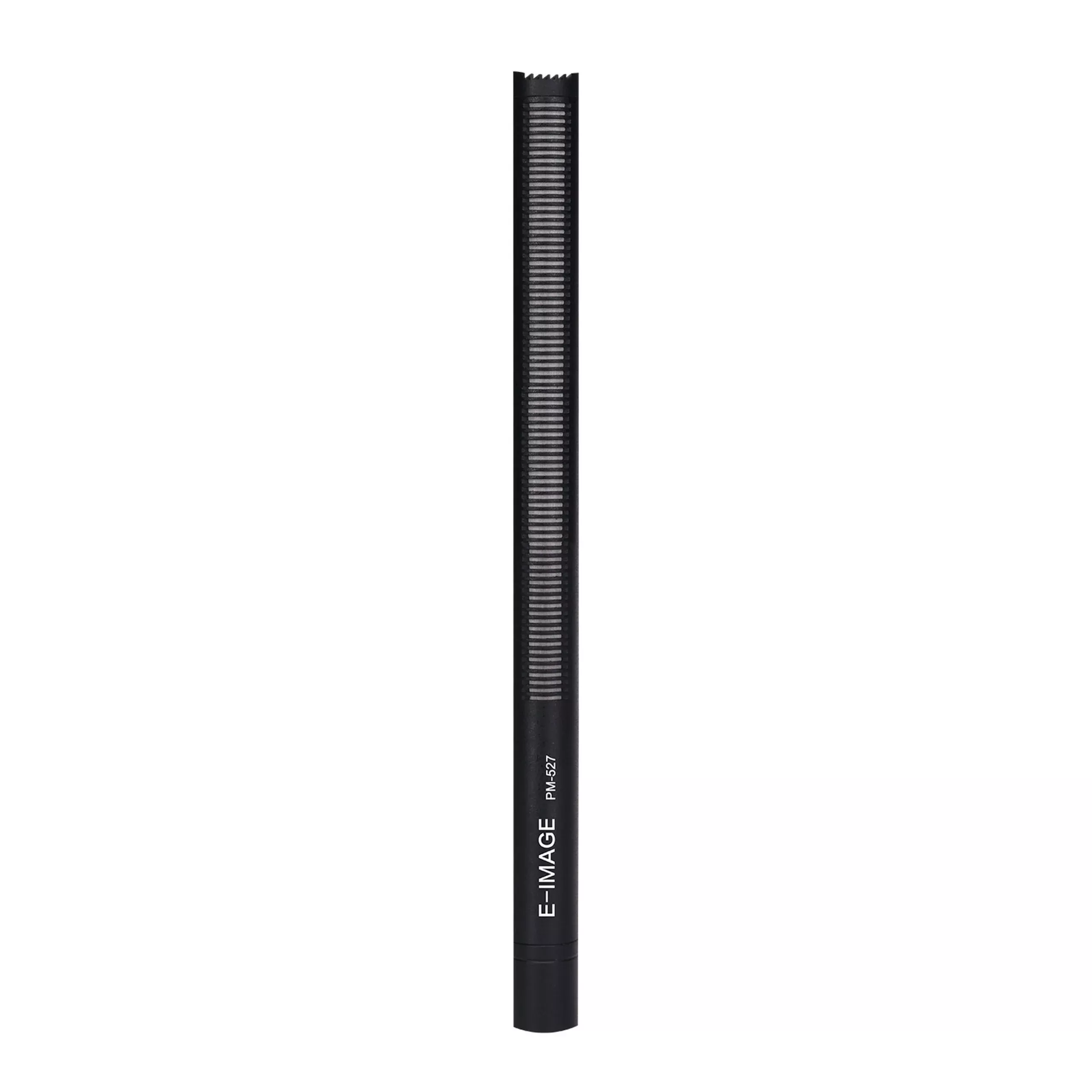

E-Image PM-527 Hyper-Cardioid Shotgun Microphone
Designed for film, radio, and television, the PM-527Hyper-Cardioid Shotgun Microphone from E-image is a short shotgun interferencemicrophone optimized for outdoor recording. It offers excellent directionalcontrol in a compact design with a balanced range of frequency response. ThePM-527 Hyper-Cardioid Shotgun Microphone features a hyper-cardioid polar pattern,a low-noise floor, and an all-brass body.
Key Features
- For Film, Radio, Television
- Hyper-Cardioid Pattern
- All-Brass Body, Black Finish
- 40Hz-16kHz Frequency Response
- Includes Foam Windscreen
Technical Specifications
Audio Output
XLRM
Bass
Built-in
Dimensions
19-250mm
Element
Back Electret Condenser
Fixture Weight
165g
Frequency Response
40Hz-16kHz
Impedance
Output: 500 OHMS -20% (at 1kHz)
Max. Range
Max Input SPL: 130dB (T.H.D?1% at 1kHz)
Open CircuitSensitivity
-38dB-3dB (1dB=1V/Pa at 1kHz)
Phantom PowerRequirements
48V DC, 2mA
Polar Pattern
Hyper-cardioid
Signal-To-Noise-Ratio
70dB (1KHz at 1Pa)
UPC Code
847983029082
Shipping Weight (lbs)
2
Shipping Dimensions(in)
20 x 6 x 4
What’s Included
1x E-Image PM-527 Shotgun Microphone
1x Foam Windscreen
1x Mic Stand Clip with Threaded 3/8” Female Mount
