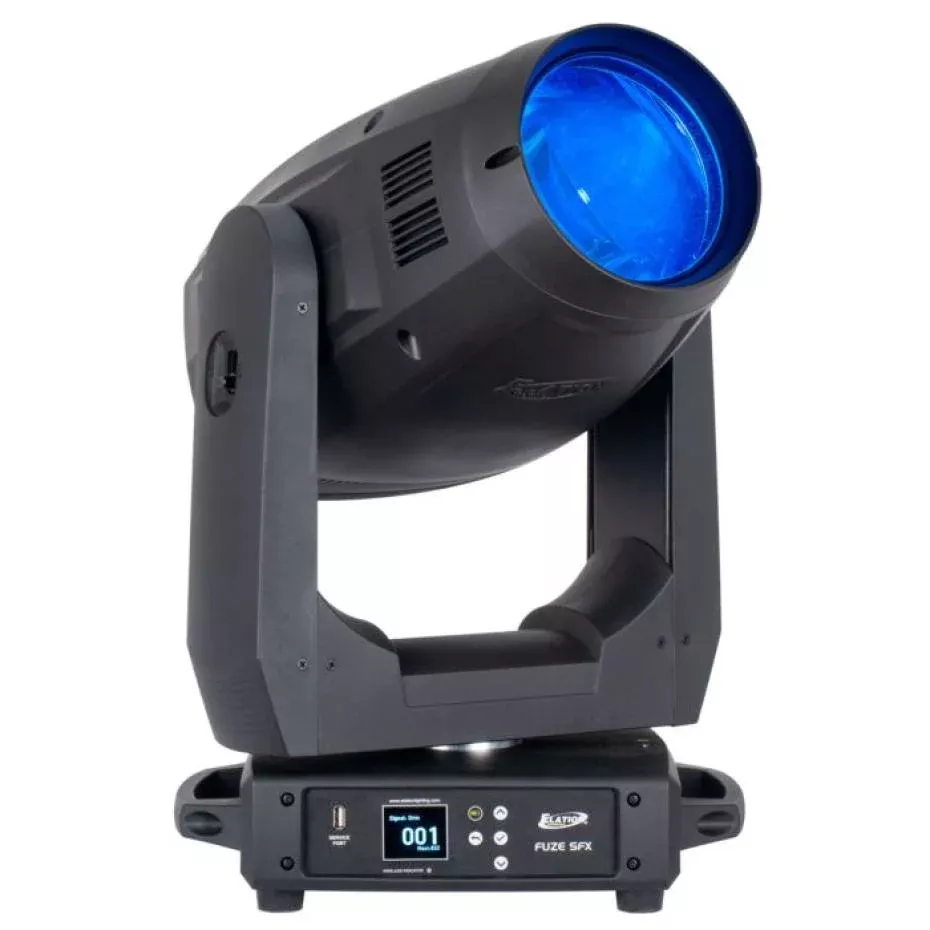

Elation Fuze SFX

Elation Professional FUZ406 (Elation FUZ-406)

The FUZE SFX™ is a new concept LED Spot FX fixture designed for a variety of applications requiring a compact and powerful multi-purpose luminaire. The SFX is capable of projecting tight beams to wide washes using a highly efficient optical design while providing over 12,000 lumens of output from its 300W white LED engine.Housing 18 carefully designed gobos and a 4.5° to 38° zoom, the FUZE SFX can create stunning mid-air FX as easily as precise image projections. The SFX allows for even stage washes utilizing its variable frost filter while a wide array of beautiful colors is possible from a seamless CMY color-mixing system plus color wheel. Dual independent rotating and overlaying prisms plus a fast iris round out the comprehensive feature set.A truly remarkable compact powerhouse for any application, the FUZE SFX is sure to create amazing effects, outstanding projections and beautiful bright washes on any stage.Features:300W LED 6,600K White LED Engine12,000 Total Lumen Fixture OutputSpot and Effects FixtureZoom Range from 4.5° to 38°Variable CMY and 7-Position Color Wheel8 Rotating and 10 Fixed GobosDual Independent Prisms for LayeringMotorized IrisVariable Wash Frost FilterSpecifications:SOURCE300W 6,600K Bright White LED Engine20,000 Hour Average LED Life**Test lab conditions. May vary depending on several factors including but not limited to: Environmental Conditions, Power/Voltage, Usage Patterns (On-Off Cycling), Control, and Dimming.PHOTOMETRIC DATA12,135 Total Lumen OutputCRI 68EFFECTS4.5° – 38° Motorized ZoomRemote FocusVariable Frost FilterDual Independent Prisms (6 Facet linear & 6 Facet round) Motorized IrisVariable 16-bit Dimming Curve ModesHigh Speed Electronic Shutter and StrobeCOLORCMY Variable Color Mix7 Position Color WheelGOBOS2 Gobo WheelsWheel 1 with 8 Rotating / Interchangeable Glass GobosWheel 2 with 10 Static GobosCONTROL / CONNECTIONS31 DMX Channels16-bit Pan, Tilt, and Dimming ControlDMX Adjustable LED FrequencyDMX, RDM, E-FLY Wireless, Art-Net, sACN Protocol Support4 Button Touch Control PanelFull Color 180° Reversible LCD Menu DisplayLocking 5pin XLR Connector In/OutLocking RJ45 Ethernet Connector In/OutIP65 Locking Power Connector In/OutUSB Connection (Firmware Updates)With Wired Digital Communication NetworkSIZE / WEIGHTLength: 14.6” (370mm)Width: 10.1″ (230mm)Vertical Height: 23.41″ (594.5mm)Weight: 46.3 lbs. (19.3kg)ELECTRICAL / THERMALAC 100-240V – 50/60Hz432W Max Power Consumption14°F to 113°F (-10°C to 45°C)APPROVALS / RATINGSCE | cETLus pending | IP20
