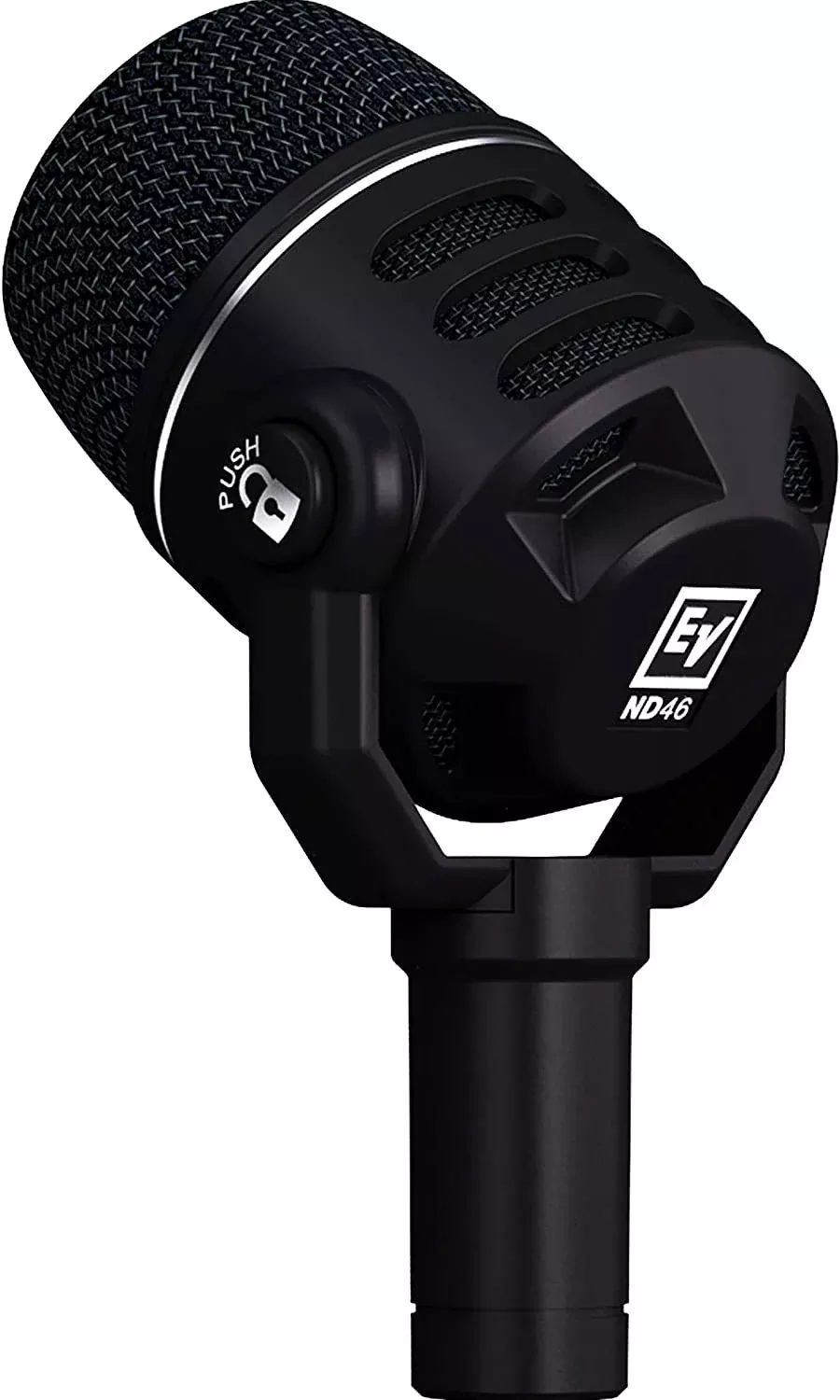

Electro-Voice ND46 Dynamic Supercardioid Instrument Microphone

Electro Voice ND46 Dynamic Supercardioid Instrument Microphone

The ND46 is a robust, high-performance , large-diaphragm dynamic supercardioid instrument microphone. Designed for capturing a wide of variety instrument sounds, the ND46 capsule is precisely tuned to deliver a lively and balanced sound, as well as excellent isolation from the sound of other nearby instruments, and its unique locking pivoting head makes mic placement easy and precise.

Key Features

• Excellent isolation, with lively and balanced sound
• Large-diaphragm dynamic capsule, creates a rich and detailed frequency response
• Easy mic placement with locking pivoting head, achieve ideal mic placement in virtually any situation by pushing a button, pivoting the head into position and releasing the button to lock
• Shock-mounted capsule minimizes handling noise, low frequency bumps and thumps won’t get into the PA
• Humbucking coil guards against line hum, use with confidence near speaker cabinets and EMF-generating equipment racks
• Memraflex grille resists denting, durable tight-mesh grilles withstand extraordinarily rough treatment

Technical Specifications

Case Material
Die cast zinc
Connector Type
3-pin XLR
Diameter (Max)
2.2″ (56mm)
Element
Dynamic
Family
ND Series
Finish
Black polyurethane paint
Impedance, Low-Z balanced
350
Maximum SPL
> 140dB
Mic Type
Instrument
Open Circuit Voltage
2.4mV/Pascal
Polar Pattern
Supercardioid
Power Requirement
Passive
Shipping Weight
20.6oz (584g)
Wired/Wireless
Wired
Weight Net
10.9oz (309g)
Height
5.67″ (144.1mm)
Audio Frequency Response
70 – 18,000
