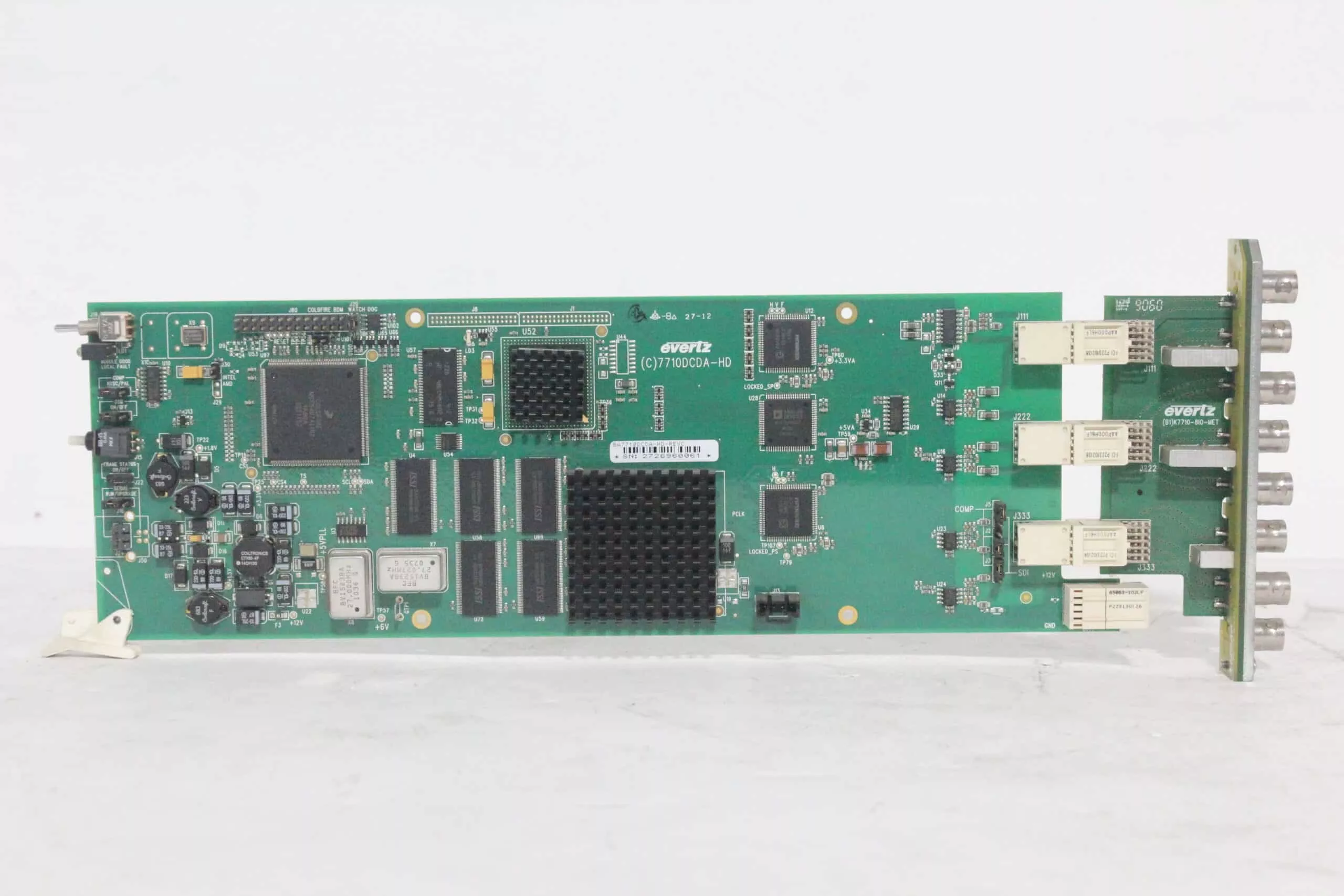

The Evertz 7710DCDA-HD is a modular broadcast device that functions as a reclocking HD/SDI distribution amplifier and a high-quality downconverter. It accepts various international HD and SD-SDI inputs, provides four reclocked HD/SDI outputs, and offers three selectable downconverted SDI or composite analog outputs. The unit performs full 10-bit processing for high-quality downconversion, including features like 3:2 pulldown for 1080p inputs and options for different aspect ratios such as 16:9 letterbox or 4:3 center crop. Read more
Features
- Input Support : Accepts 1.5Gb/s HD-SDI (SMPTE ST 292M) and 270Mb/s SD-SDI (SMPTE ST 259) signals, automatically detecting the format.
- Distribution Amplification : Provides four high-quality, reclocked outputs that match the input video format (HD or SD).
- Downconversion : Converts HD signals to various standard definition formats.
- Output Flexibility : Offers three selectable output options : reclocked HD/SDI (if input is HD/SD) or downconverted analog composite (NTSC/PAL).
- Advanced Processing : Includes 10-bit full processing and features like color space conversion from ITU Rec. 709 to ITU Rec. 601.
- Aspect Ratio Control : Provides support for 16:9 letterbox, 14:9 letterbox, 13:9 letterbox, 4:3 center crop, and 4:3 anamorphic squeeze.
- Audio Handling : De-embeds two groups of audio and can re-embed them on the SDI outputs.
- Timecode Support : Supports free-running or embedded SMPTE 12M-2 timecode for 3:2 pulldown synchronization.
- Filters : Allows for selection of horizontal and vertical filters to control picture sharpness.
