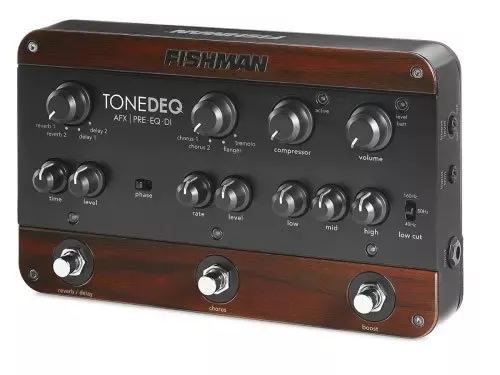

Fishman Tonedeq AFX Preamp, EQ, and DI

With a high-quality preamp, dual effects section, tone controls, a compressor, level booster and a balanced DI – the ToneDEQ has everything you need in one box. Its analog signal path goes from end to end – from preamp to output – to give acoustic musicians a richer tonal quality. Even the digital effects are mixed in parallel so they don’t affect the purity of the your acoustic instrument.Fully Balanced Stage DIFlexible outputs include a 1/4″ amplifier output and XLR DI output for the lowest noise possible. Plus the DI features automatic ground-lifting and selectable pre/postEQ settings.Discrete Class A PreampWith Fishman, you get quality discrete Class A signal conditioning created by a leader in instrument preamp design. The high impedance input is a must for anypassive instrument pickup.Advanced 4-Band EQLegendary 4-band equalizer design provides superior tone control for any acoustic instrument. The variable low cut filter controls sub-bass effects produced by somepassive pickups.

• Input: 10mOhm, Discrete Class-A JFET design
• Audio: All-analog signal path with parallel digital effects
• Tone Control: 4-band EQ with Bass, Middle, Treble, and selectable Low Cut
• Dual Effects: Reverb (2) or Delay (2), Chorus (2), Flanger or Tremolo
• Dynamics: Soft-knee Compressor, Boost Footswitch (up to 9dB)
• Feedback Control: Selectable Phase Invert
• Audio I/O: 1/4″ mono instrument input, 1/4″ amplifier output, balanced XLR DI output with pre/post routing
• Power: 9-Volt battery (not included), Fishman 910-R AC adapter (sold separately)
• Dimensions: 5.36″L (142mm) x 9.5″W (241mm) x 2.2″H (55mm)
