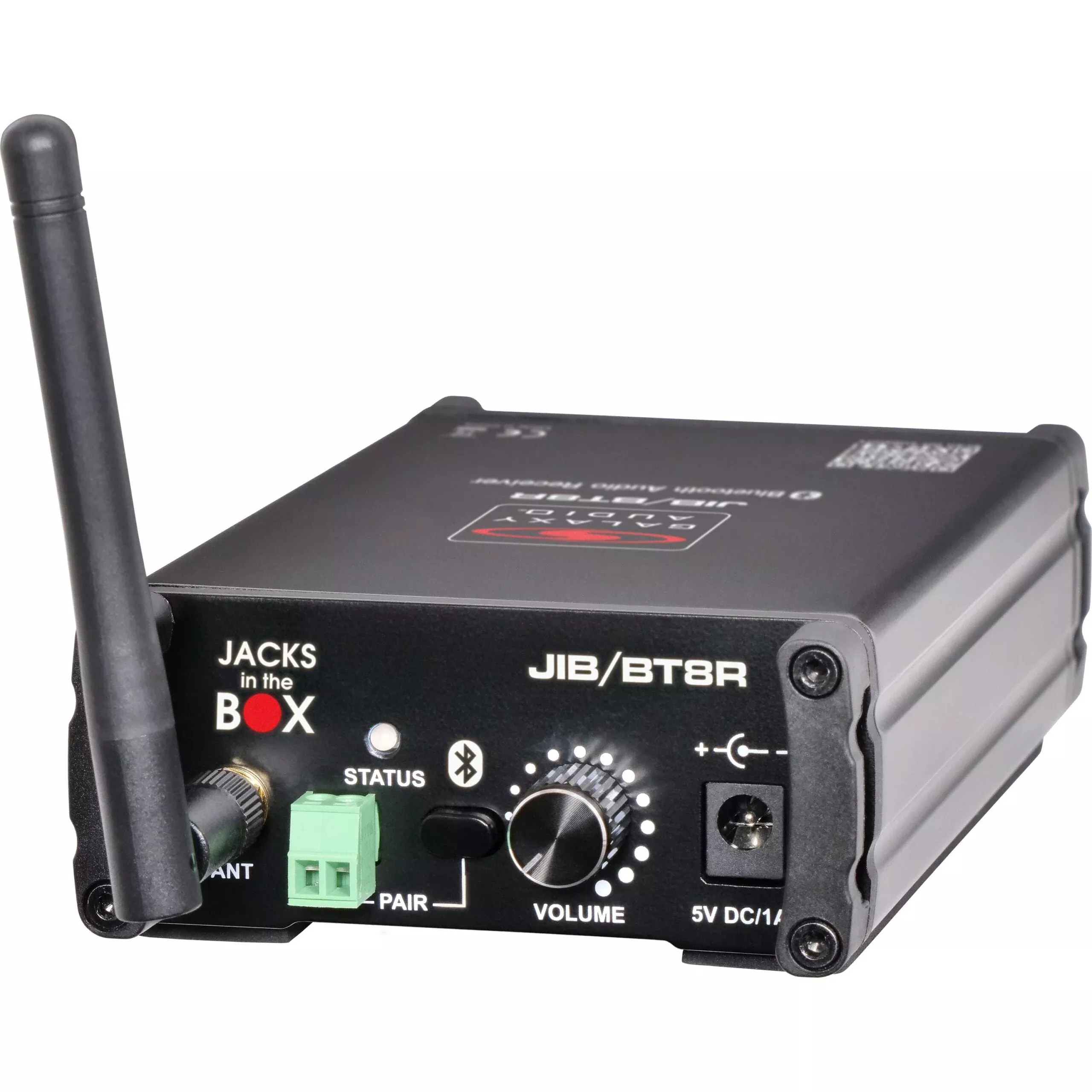

Galaxy Audio JIB/BT8R Stereo Bluetooth Receiver

Galaxy Audio JIB/BT8R Stereo Bluetooth Receiver

The JIB/BT8R is a lightweight, compact, portable stereo Bluetooth receiver that interfaces high quality stereo Bluetooth audio wirelessly from a smart phone to an active speaker or mixing console. The audio Bluetooth receiver offers a practical, straightforward audio solution for venues that require a quick wireless set up. Additionally, the receiver offers remote pairing capability by connecting to the included euro-block connector. The JIB/BT8R features balanced Left/Right XLR and 1/4″ line outputs with a volume control. The compact stereo Bluetooth receiver is powered on 5V DC and comes with a removable 2.4GHz antenna. The portable Bluetooth receiver can be placed on a flat surface such as a rack shelf or mounted to a mic stand. DJs accepting requested songs that may not have it in their track can allow a user to Bluetooth a song straight to their mixing console for live DJ mixing. Singers and musicians can stream audio wirelessly to the receiver. The JIB/BT8R can also be used for a number of other audio streaming applications including dance studios, aerobics, school and gym classes, house of worship, restaurants, nightclubs, event spaces, karaoke, weddings, and many more.

Key Features

• Transmit Audio from Smart Phone to Active Speaker or Mixer
• Left/Right XLR and 1/4″ Line Out for Stereo Playback
• Lightweight, Compact, Tough, Portable Design
• Volume Control
• Remote Pairing Capability
• Removable 2.4 GHz Antenna
• Stand Mountable (3/8″-5/8″ stand adapter included)

Technical Specifications

Bluetooth Version
V4.0
Frequency Range
2.4GHz – 2.48GHz
Output Connector
Left/Right Balanced XLR/M, Left/Right Balanced 1/4″ Line
Controls
Volume, Wireless Bluetooth Pair, Remote Pairing Euro-block Connector
Indicators
Status LED
Sensitivity
-80dBm <+/-0.1% BER
Signal to Noise
>75dB
Total Harmonic Distortion
<0.1%
Operating Range
Under Typical Conditions 32.8′ (10 m)
Note: actual range depends on RF signal absorption, reflection, and interference.
Operating Temperature
Range -40-deg F to 176-deg F (-40 C-deg to +80 C-deg)
Mountable
Yes, 5/8″ or 3/8″ with included adapter
Antenna
2.4 GHz Removable
Dimensions
1.58″ x 3.54″ x 5.8″ (40 x 90 x 147 mm)(HxWxD)
Weight
12.17 oz (345 g)
Power Requirements
5V DC/1A Power Supply (included)
