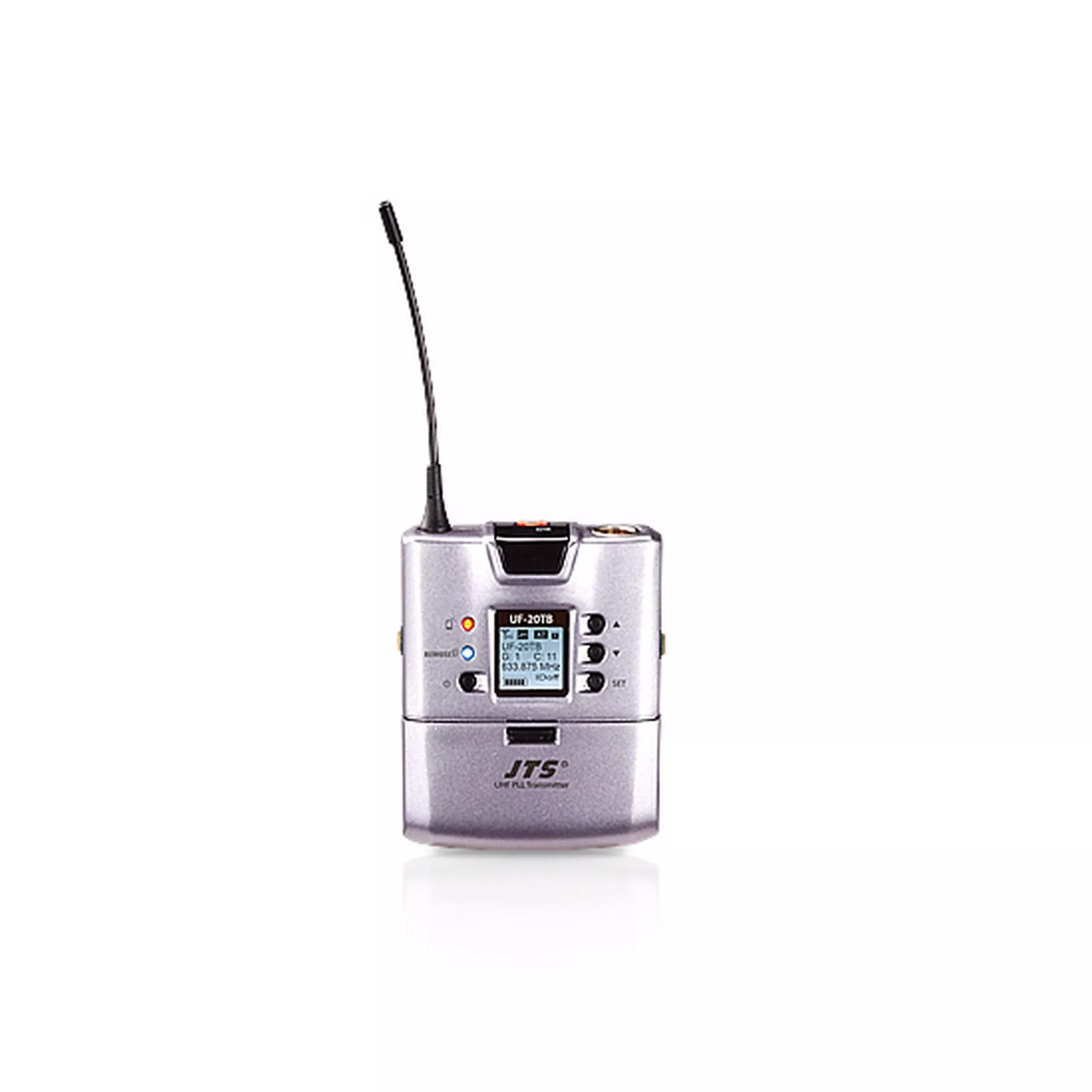

JTS UF-20TB UHF Wideband Bodypack Transmitter

JTS UF-20TB UHF Wideband Bodypack Transmitter

UHF PLL professional wideband body pack transmitter

Key Features

• 2400 to 3000 selectable frequencies
• Preset 15 groups each of up to 63 compatible channels
• Phase-Locked Loop (PLL) synthesized tune
• Extended dynamic range and smooth frequency response.
• Adjustable transmission power between Low and High
• The panel Lock-On function prevents tampering and RFinterruption
• It is designed with slot-in charging feature with two AANiMH rechargeable batteries.

Technical Specifications

Frequency Preparation
PLL Synthesized Control
Carrier FrequencyRange
UHF 470~960 MHz
Bandwidth
60~75MHz Wideband
RF Outputs
Low / High
Stability
<-10KHz
Frequency Deviation
– 48KHz (Peak)
Chassis
Aluminum alloy
LCD Display
Group, Channel, Frequency, Battery Status, User Name , GAINAdjust
Controls
Power ON/OFF, AF Level, Frequency (Up/ Down), Lock-on Mode, REMOSETID Pairing, RF Output Adjust
Output Connector
4P Mini XLR
Spurious Emissions
<-50 DBC
Audio FrequencyResponse
50Hz ~ 18k Hz
Battery
AA NiMH x2
Dimensions
62mm (W) x80.3mm (H) x22.6mm (D)
Weight
93g
Notes
Actual product specifications may vary depending on modeland region.
