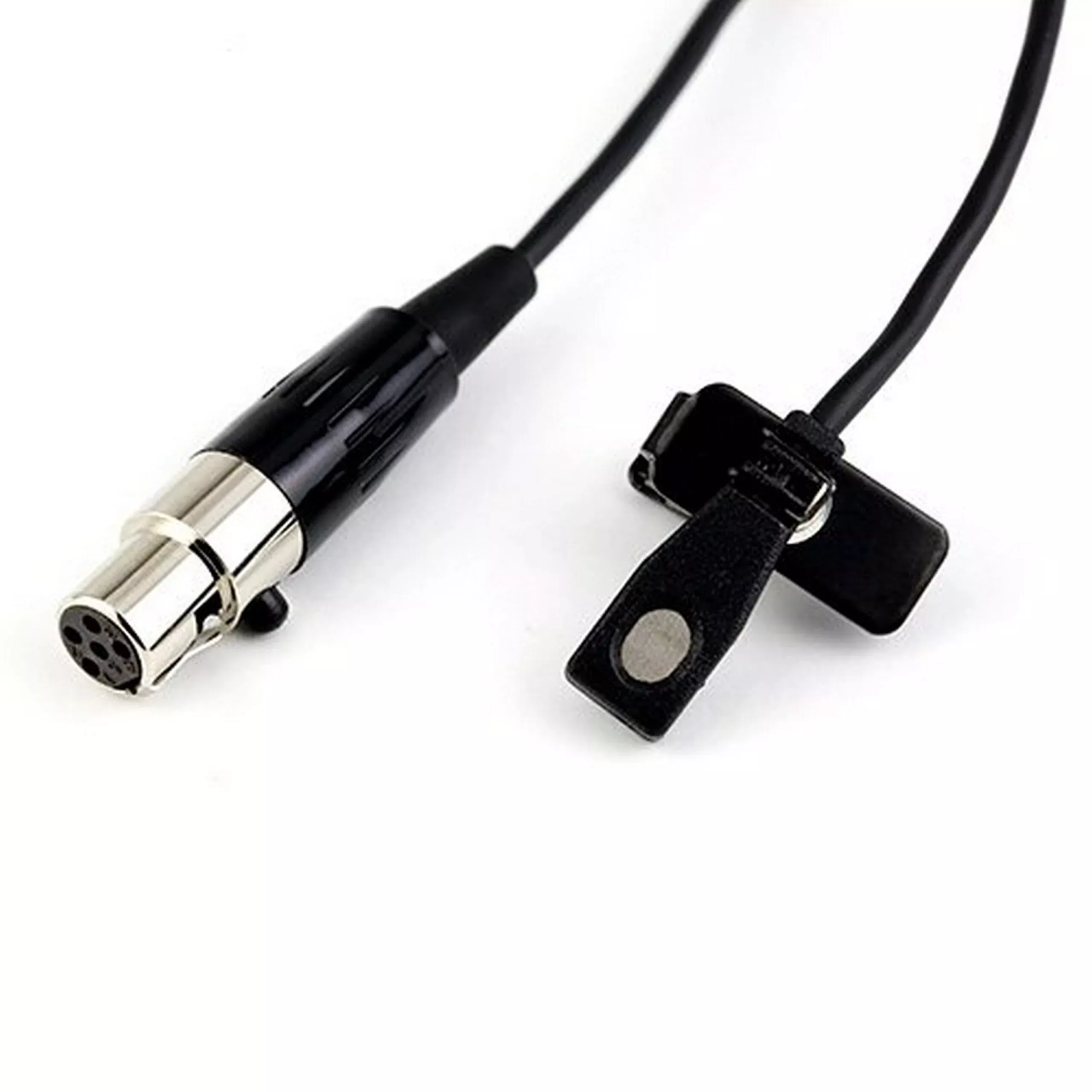

Lectrosonics M152/5P High-Performance Omnidirectional Lavalier Microphone, 5-Pin Plug

Lectrosonics M152/5P High-Performance Omnidirectional Lavalier Microphone, 5-Pin Plug

The M152 isa high performance microphone with heavily suppressed mechanical noise forcritical applications. A wide, flat frequency response is augmented by a 2 or 3dB bump in the upper octaves to add a crisper sound. The mic capsule should bepositioned in the center of the talker’s chest, not to either side, as high upas is practical. In windy conditions, it can be placed underneath a collar orthin clothing to reduce wind noise, although this will dull the sound somewhat.

Technical Specifications

Sensitivity
10mV per Pascal/ 100mV @ 114 dB SPL
Impedance
3 k (2-6 k )
Polar Pattern
Omnidirectional
Freq Range
20 – 20,000Hz
Max Operating Voltage
10V
Standard Operating Voltage
2V
Current Consumption
30uA @ 1.3V
Signal/Noise Ratio
More than38dB
