Lowell CB84-SGVPA

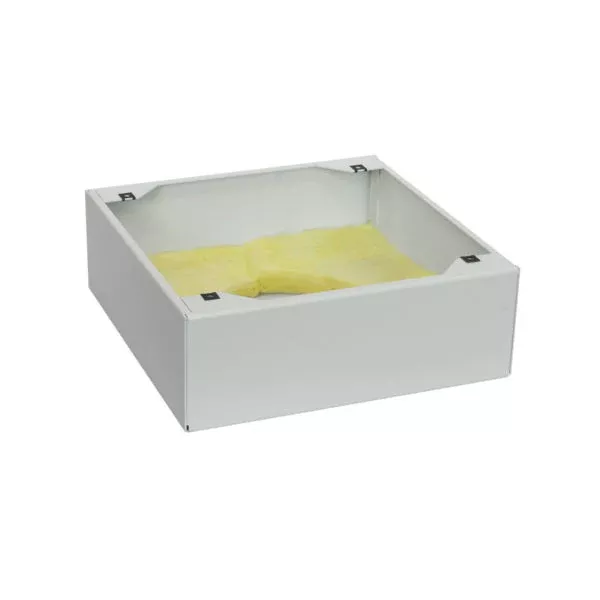

CB84-SGVPA: Surface-mount Backbox for Vandal-resistant Grille

Surface-mount steel enclosure for ceiling or wall installation is designed to screw-mount Lowell grille (model SG-8VP) with an 8″ speaker in vandal-prone areas or where tampering is a concern (indoor applications).

SPECIFICATIONS

• Material:  16-gauge one-piece steel, welded seams, white finish
• Height:  11.50 in.
• Width:  11.50 in.
• Depth:  4.00 in.
• Volume:  0.306 cu.ft.
• Acoustical Treatment:  1 in. thick batting
• For Grille Type:  Screw-mount, tamper-resistant
• Mounting Aids: U-clips, holes for a tamper-resistant grille, universal mounting pattern for E.O. box, 0.875 in. hole for conduit

COMPLIANCE & CERTIFICATION

• Made in U.S.A.
• Certified U.S. steel

A&E SPECIFICATIONS

• The vandal-resistant surface-mount enclosure for indoor installation of an 8″ speaker shall be Lowell model CB84-SGVPA, which shall be fabricated U.S. steel with white powder epoxy finish measuring 11.5″ square x 4″D. It shall feature a rear hole (.875 dia.) for 1/2″ conduit or wire access and provisions to mount to an electrical box (4″ square, 4″ octagon, 1-gang or 2-gang – not included). It shall also feature four mounting holes and 8-32 U-clips at flanged corners to accept the specified screw-mount grille. The enclosure shall include 1″ thick acoustic batting.
