Lowell CB86-SGVPO

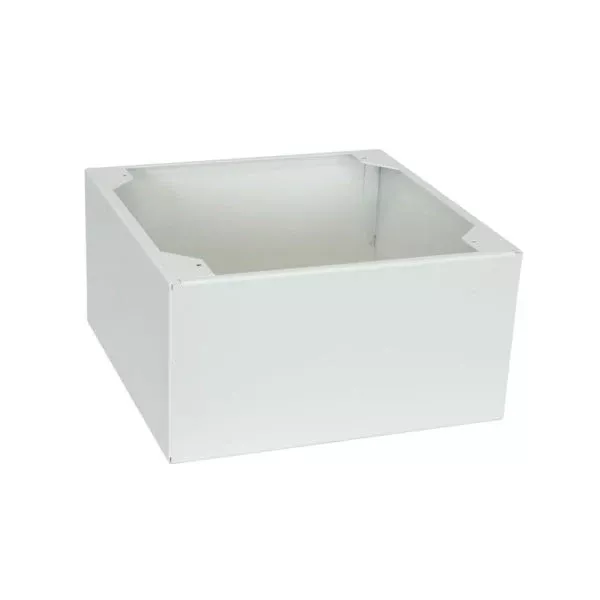

CB86-SGVPO: Surface Box for Vandal-resistant Grille (outdoor)

Surface-mount, 6″D galvanized steel enclosure is designed to screw-mount a vandal-resistant grille (Lowell model VRG-8) with an 8″ speaker in vandal-prone areas or where tampering is a concern. The box can be mounted in protected outdoor areas when used with a moisture-resistant speaker.

SPECIFICATIONS

• Material:  16-gauge galvanized steel, welded seams, white finish
• Height:  11.50 in.
• Width:  11.50 in.
• Depth:  6.00 in.
• Volume:  0.459 cu.ft.
• Acoustical Treatment:  1 in. thick batting
• For Grille Type:  Screw-mount, tamper-resistant
• Mounting Aids: U-clips, holes for a tamper-resistant grille, universal mounting pattern for E.O. box, 0.875 in. hole for conduit

COMPLIANCE & CERTIFICATION

• Made in U.S.A.
• Certified U.S. steel

A&E SPECIFICATIONS

•  The vandal-resistant surface-mount enclosure for 8″ speakers shall be Lowell model CB86-SGVPO, which shall be galvanized steel with white powder epoxy finish measuring 11.5″ square x 6″D. It shall feature a rear hole (.875 dia.) for 1/2″ conduit or wire access and provisions to mount to an electrical box (4″ square, 4″ octagon, 1-gang, or 2-gang – not included). It shall also feature four mounting holes and 8-32 stainless steel press nuts to accept the specified screw-mount grille. The enclosure shall include 1″ thick acoustic batting. It can be mounted in protected outdoor areas when used with a moisture-resistant speaker.
