Lowell CB86A

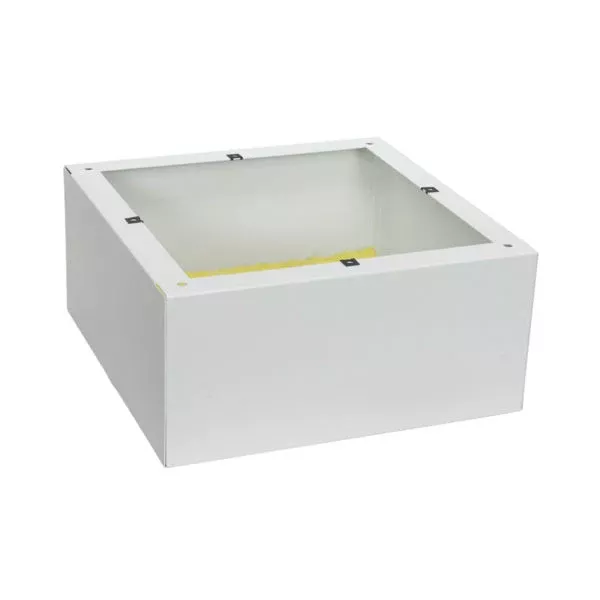

CB86A: Surface-mount 6?D Backbox

Surface-mount steel enclosure for ceiling or wall is designed to mount a screw-mount grille and standard 8″ speaker. The clean square format is ideal for use in schools, offices, restaurants, hotels and similar venues.

SPECIFICATIONS

• Material:  20-gauge one-piece U.S. steel, welded seams, white finish
• Length:  13.00 in.
• Width:  13.00 in.
• Depth:  6.00 in.
• Volume:  0.587 cu.ft.
• Acoustical Treatment:  1 in. thick acoustic batting
• For Grille Type:  Screw-mount
• Mounting Aids:  Timmerman clips on front flanges, universal mounting pattern for E.O. box (not included), 0.375 in. hole with grommet for wire access, Wiremold 500 Series knockouts on two sides

COMPLIANCE & CERTIFICATION

• Made in U.S.A.
• Certified U.S. steel

A&E SPECIFICATIONS

• The surface-mount enclosure for use with 8″ speaker and screw-mount grille shall be Lowell model CB86A. It shall be 13″ x 13″ x 6″ steel construction with white powder epoxy finish, four mounting holes, four 8-32 U-clips, a rear access hole with grommet, provisions to mount an electrical box, two side knockouts for Wiremold 500 Series, and 1″ thick fiberglass acoustic batting. The enclosure shall be made in the U.S.A. with certified U.S. steel.
