Lowell CR2P-4518

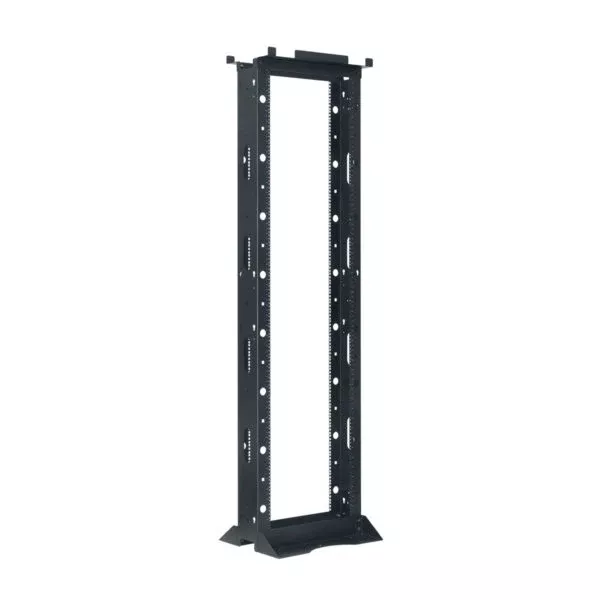

CR2P-4518: Cable Rack 45U x 18?D

Two-post, gangable cable rack provides stable support for routing large cable bundles and includes ten quick-install nylon plastic cable managers that can be mounted on the front, sides, back and interior of the channel rails for versatile cable management. The space saving 23.5 in. wide footprint fits a 2×2 floor space. Ships unassembled.

SPECIFICATIONS

• Rack Space: 45U
• Overall Height: 84.65 in.
• Overall Depth: 18.00 in.
• Overall Width: 23.50 in.

FEATURES

• Two 12-gauge steel channel rails (6 in. wide)
• Holes tapped 12-24 (front) and square holes (rear), both on EIA spacing
• Numbered RU increments
• Multiple cable pass-through points
• Grounding studs at top and bottom
• Two-piece 12-gauge steel top and base
• Four holes for anchors (not included)
• 23.5 in. wide footprint designed to fit 2×2 floor space.
• Ten quick-install nylon cable managers
• Assembly and mounting hardware
• 800 lbs. load capacity
• Smooth black finish
• Ships unassembled

COMPLIANCE & CERTIFICATION

• EIA/TIA compliant
• Certified US steel
• Made in the USA

A&E SPECIFICATIONS

• The EIA/TIA compliant two-post, gangable cable rack shall be Lowell Model CR2P-4518, which shall measure 23.50″W x 18.00″D (at base) x 85.65″H, providing panel space of 45 rack units. Rack construction shall be a two-piece steel top and two-piece steel base, which shall feature four holes for anchoring to the floor (anchors not included). The cable rack shall include two 12-gauge steel (6″W) vertical channels numbered with RU increment front/back, featuring one side with mounting holes tapped 12-24 on EIA spacing, and square holes on the opposite side. Top, base, and vertical channels shall have a smooth black powder epoxy finish. The rack shall ships unassembled and includes ten quick-install cable managers, assembly and panel mounting hardware.
