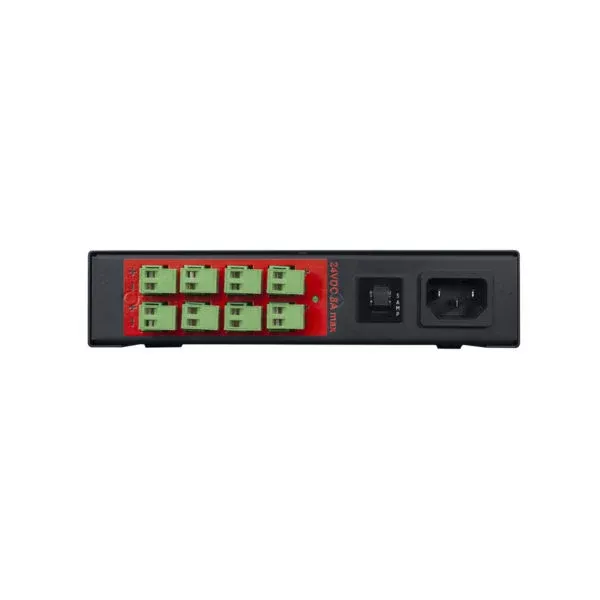

Lowell DCP-24

DCP-24: Multi-output Power Supply (24VDC)

Space saving power distribution unit designed for continuous operation, provides eight voltage outputs. Ideal for DC powered devices and behind-screen use.

SPECIFICATIONS

• Features eight outputs (24VDC 8A)
• Each output is protected by PTC fuse with auto reset for overload protection.
• LED indicates power status (active/inactive).
• Detachable voltage output terminals (8) with quick-install screw terminal connectors.
• Universal Input: 100-240VAC, 50/60Hz
• 6 ft. power cord (C13 to NEMA 5-15P plug)
• Chassis: 7 in. x 6 in. x 1.625 in.
• Brackets for horizontal or vertical installation

COMPLIANCE & CERTIFICATION

• ETL Listed (UL60065)
• Made in the U.S.A. with domestic and international components

A&E SPECIFICATIONS

• Power distribution shall be Lowell model DCP-24, which shall feature a 7″ x 6″ x 1.625″ steel chassis with black finish and mounting brackets for vertical or horizontal installation. The unit shall feature 8 voltage outputs, which shall be Euro style output terminals (24VDC, 8A total). Each output shall be protected by an auto-reset PTC fuse. The unit shall feature universal input (100-240VAC 50/60Hz) with C14 power inlet compatible with international standards. It shall include a 6 ft. power cord (C13 to NEMA 5-15) and variable speed fan. The power distribution shall be made in the U.S.A. with global components.
