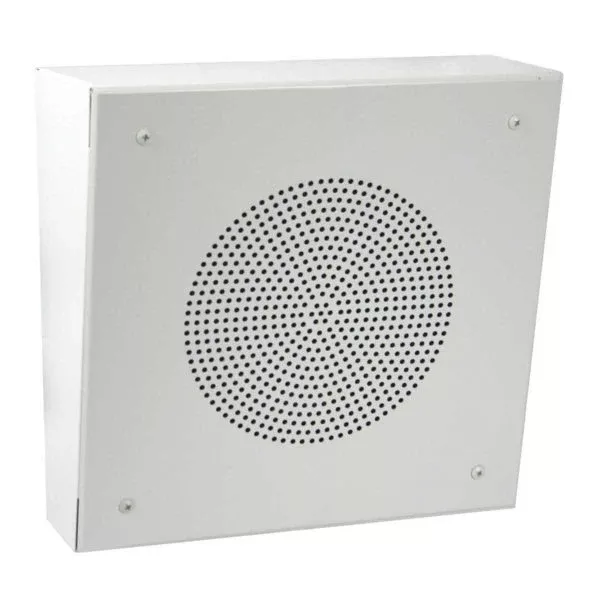

Baffle DSL-8 |
|
Steel wall baffle, sloped front and beveled edge for use with an 8 inch driver. |
|
SPECIFICATIONS • Material: Steel with beveled edge and sloped front • Grille: Square with circular perforation pattern • Finish: White • Size: 11.3 in.H x 11.5 in.W x 5.29 in.D at top (3.05 in. at bottom) • Mounting Aids: Knockouts for 500 Series Wiremold on top/bottom and universal mounting hole pattern in rear CERTIFICATION & COMPLIANCE • Certified U.S. steel • Made in Missouri, U.S.A. A&E SPECIFICATIONS The baffle for indoor surface-mount applications shall be Lowell Model No. DSL-8, which shall measure 11.3 in. H x 11.5 in. W x 5.29 in. D (at top). The backbox shall feature a sloped front, wiremold knockouts on top/bottom, and universal mounting hole pattern in rear. The steel grille shall feature a circular perforation pattern. The unit shall have a white powder epoxy finish. |
