Baffle DSQ-8 |
|

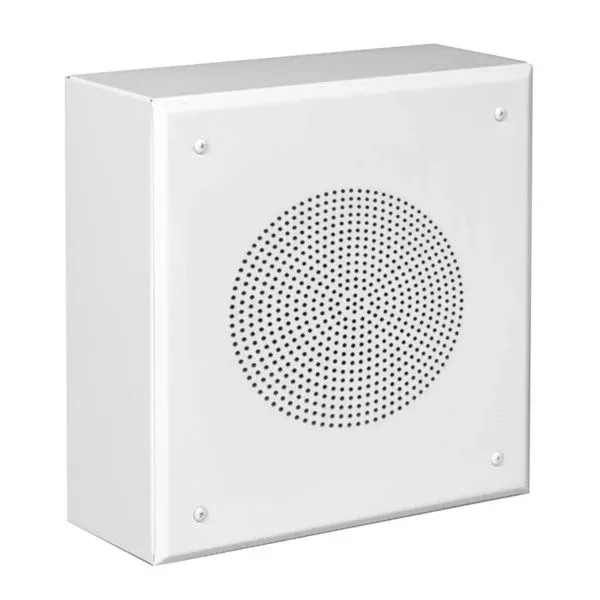

Steel wall baffle with white finish and beveled edges for use with an 8 inch driver. |
|
SPECIFICATIONS • Material: Steel with beveled edge • Grille: Steel • Finish: White • Size: 11.3 in.H x 11.5 in.W x 4 in.D • Mounting Aids: Knockouts for 500 Series Wiremold on top/bottom, and universal mounting hole pattern in rear CERTIFICATION & COMPLIANCE • Certified U.S. steel • Made in Missouri, U.S.A. A&E SPECIFICATIONS The baffle for indoor surface-mount applications shall be Lowell Model No. DSQ-8, which shall measure 11.3″H x 11.5″W x 4″D. The backbox shall feature wiremold knockouts on top/bottom and universal mounting hole pattern in rear. The steel grille shall feature a circular perforation pattern. Both pieces shall have a white powder epoxy finish. |
