Lowell FW-8T

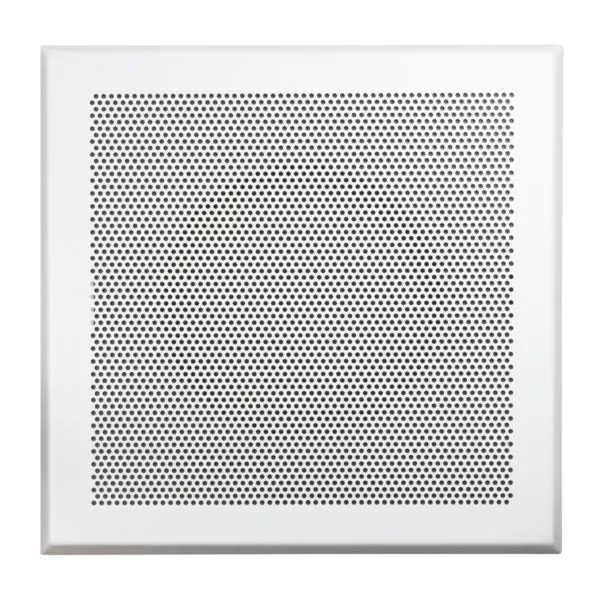

FW-8T: Torsion Speaker Grille

Square torsion speaker grille with sub-plate and torsion springs is made for use with an 8 inch speaker assembly weighing less than 3.5 lbs. and Lowell backbox RE1175-T (order separately).

SPECIFICATIONS

• Style:  Torsion
• Material:  18-gauge one-piece perforated steel with separate 21-gauge steel subplate
• Finish:  White, beveled edge
• Size:  13.00 in. square
• Mounting Projection:  0.313 in.
• Mounting Provisions:  Torsion bracket spring devices accommodate a variety of ceiling depths, welded studs w/nuts

CERTIFICATION & COMPLIANCE

• Made in U.S.A.
• Certified U.S. steel

A&E SPECIFICATIONS

• The square torsion speaker grille for 8 inch driverss shall be Lowell Model FW-8T. It shall be 18-gauge steel with perforated center and beveled frame, separate subplate with welded speaker studs and torsion bracket/spring devices for backbox installation. The grille shall be 13 in. square with mounting projection of 0.313 in. The grille shall be finished in white powder epoxy.
