Lowell IBOX-3

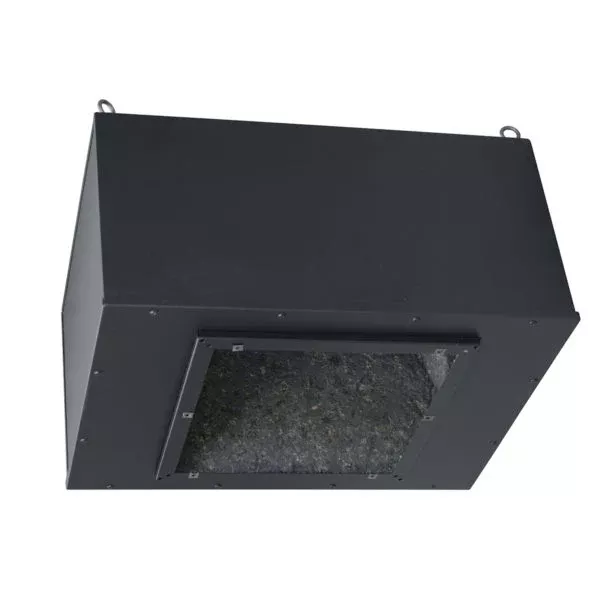

IBOX-3: Acoustic Backbox

Large volume acoustic backbox engineered for distributed speaker systems requiring sound reinforcement of the highest quality. IBOX-3 combines the benefits of a large metal enclosure with the acoustic characteristics associated with a 3/4″ plywood box, allowing a 12″ speaker to operate at its optimum loading level to provide the system with improved low frequency response.

SPECIFICATIONS

• Material:  Welded unitized 18-gauge steel with damping to eliminate acoustical and mechanical resonance
• Finish:  Black
• Size:  23.75 in. x 18.00 in.
• Depth:  12.11 in.
• Volume:  3 cu.ft.
• Acoustical Treatment:  Sound board and 1.5 in. batting
• Mounting Aids:  8-32 screw retaining U-clips, 1/4-20 forged eyebolts
• For Grille Type:  Screw-mount

COMPLIANCE & CERTIFICATION

• Made in U.S.A.
• Certified U.S. steel

A&E SPECIFICATIONS

• The recessed acoustic backbox for 12″ speakers shall be Lowell Model No. IBOX-3 which shall be fabricated of 18-gauge steel heavily damped to eliminate acoustic and mechanical resonance. Inner walls shall be lined with .5″ thick acoustic fiberboard and 1.5″ thick acoustic lining. The backbox shall measure 23.75″ x 18.00″ x 12.11″ with internal volume of 3 cu.ft. It shall include four (4) 1/4-20 eyebolts on rear.
