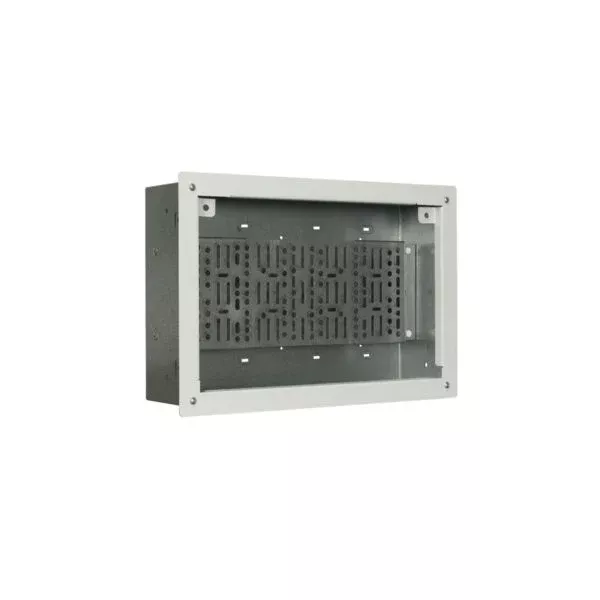

Lowell IWB-914

IWB-914: In-Wall Box 9?H x 14?W

In-wall box mounts between standard 16″ studs, providing a handy storage area behind wall-mounted displays, while serving as a convenient distribution point for various devices and cabling. Includes trim plate.

SPECIFICATIONS

• Height (without trim plate): 9.25 in.
• Width (without trim plate):  14.25 in.
• Depth (usable):  3.6 in.

FEATURES

• Galvanized steel box
• Steel trim plate with white finish
• One elevated panels can be moved, removed, or reversed to mount upside down
• Knockouts in top and base for cables and EO box (box not included)
• Rear anchors for cable tie-off
• Load capacity 15 lbs.
• Box mounts between 16″ wall studs in 4″D wall
• Grounding stud in base

COMPLIANCE & CERTIFICATION

• Certified U.S. steel
• Made in Missouri, U.S.A.
• UL 2416 Listed
• RoHS compliant

A&E SPECIFICATIONS

• The in-wall box shall be Lowell IWB-914, which shall feature a galvanized steel box with white trim plate. Overall dimensions, including trim plate, shall be 10″H x 15″W x 3.8″D. The box shall mount between 16″ stud centers. It shall feature a removable mounting panel for devices, top and bottom knockouts for cables and 1-gang electrical boxes, and a grounding stud.
