Lowell IWBK-1414

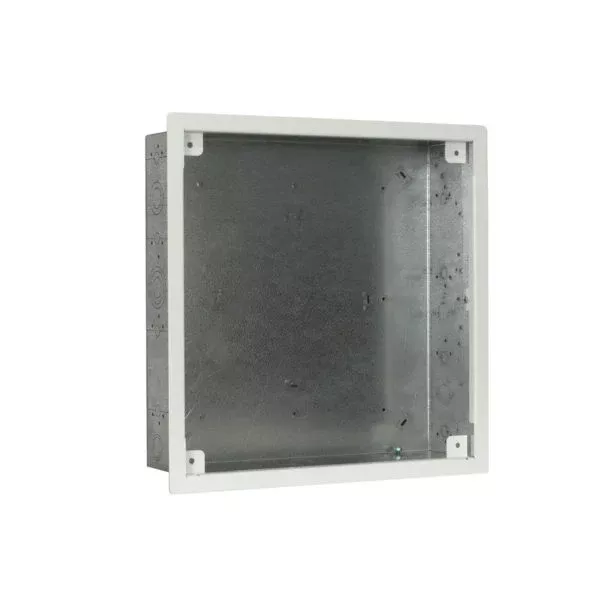

IWBK-1414: In-Wall Box w/Breakaways 14?H x 14?W

In-wall box mounts between standard 16″ studs, providing a handy storage area behind wall-mounted displays, while serving as a convenient and adaptable distribution point for various devices and cabling. Includes trim plate.

SPECIFICATIONS

• Height (without trim plate):  14.25 in.
• Width (without trim plate):  14.25 in.
• Depth (usable):  3.6 in.

FEATURES

• Galvanized steel box
• Steel trim plate with white finish
• Side breakaway segments adjust to fit shallow walls (<4")
• Knockouts
• Anchors for cable tie-off
• Load capacity 15 lbs.
• Box mounts between 16″ wall studs

COMPLIANCE & CERTIFICATION

• Certified U.S. steel
• Made in Missouri, U.S.A.
• UL 2416 Listed

A&E SPECIFICATIONS

• The in-wall box shall be Lowell IWBK-1414, which shall feature a galvanized steel box with white trim plate. Overall dimensions, including trim plate, shall be 15″H x 15″W x 3.7″D. The box shall mount between 16″ stud centers. It shall feature knockouts for cables and 1-gang electrical boxes, and a grounding stud. The box shall have side breakaway segments to adjust to walls shallower than 4″D.
