Lowell P68XA

P68XA: Recessed Backbox (4?D)

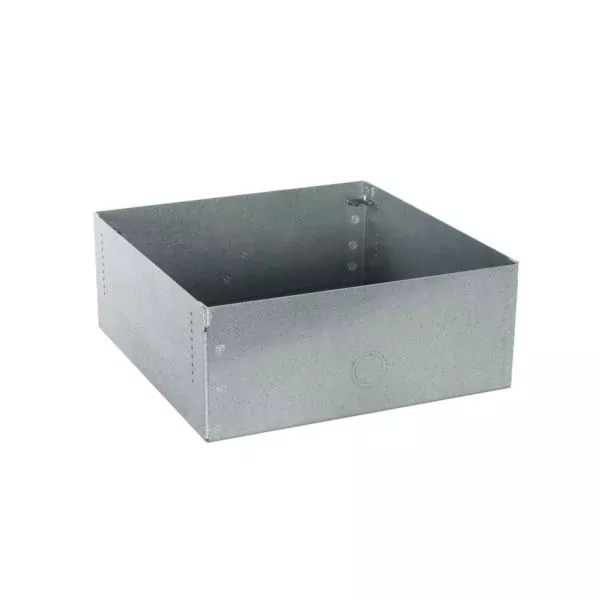

Galvanized steel enclosure for recessed installation of an 8″ speaker in a ceiling or wall. Two sides are pre-punched to mount optional retrofit brackets or tile support channel rails (order separately) in various ceiling or wall thicknesses.

SPECIFICATIONS

• Material: 18-gauge galvanized steel
• Finish:  Galvanized steel
• Height:  10.00 in.
• Width:  10.00 in.
• Depth:  4.00 in.
• Volume:  0.231 cu.ft.
• Acoustical Treatment:  Foam pad lining
• Mounting Aids:  Knockouts, mounting tabs, U-clips, two depth adjustment brackets
• For Grille Type:  Screw-mount

COMPLIANCE & CERTIFICATION

• Made in U.S.A.
• Certified U.S. steel

A&E SPECIFICATIONS

• The enclosure for recessed installation of 8″ speakers shall be Lowell model P68XA, which shall be 18-gauge galvanized steel (10″ x 10″ x 4″) and shall feature combination knockouts for conduit (1/2″ and 3/4″) on two opposite sides and rear of enclosure. It shall also feature recessed mounting tabs with four Tinnerman clips, and a foam pad to help reduce acoustic/mechanical resonance. The enclosure shall be made in the U.S.A.
• Retrofit Option: SS9 retrofit bracket (order separately) can be mounted to the enclosure using holes pre-punched to accommodate different ceiling or wall thicknesses.
• Tile Ceiling Option: tile support channel rails _______ (SS24, SS30, or SS48) (order separately) can be mounted to the enclosure using holes pre-punched to accommodate different ceiling or wall thicknesses.
