Home » Shop » Distributed Audio » Lowell RY-P2

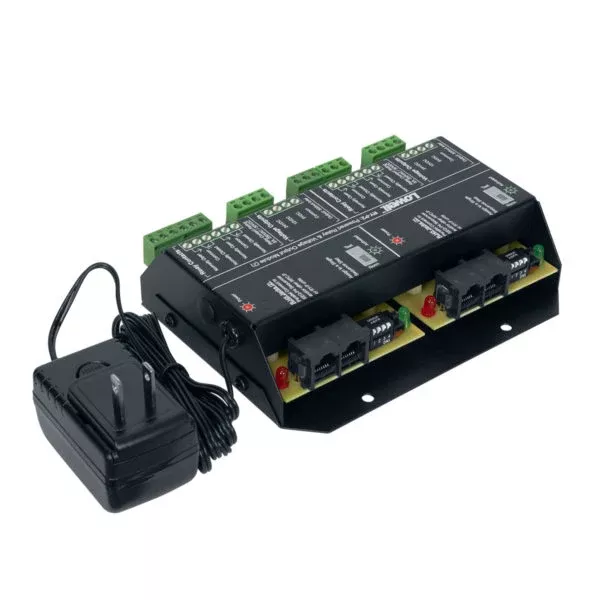

Lowell RY-P2

Original price was: $201.12.Current price is: $106.80.

Sale!
SKU: RY-P2 Categories: ,
Share


RY-P2: DPDT Relays w/pass-through jacks

Relay features labor-saving “pass-through” RJ45 jacks for quick connections to a compatible sequencer, remote power control, or relay. DPDT relays and contacts can be used to switch any AC or DC load, up to 5A.


FEATURES

  • Relay is activated by sequencer SEQ-P4 (order separately)
  • Switch any load, AC or DC, up to 5A’
  • Relay contact rating 5A, 250VAC/30VDC
  • Includes (2) DPDT relays
  • Steel Chassis:  5.00 in. x 1.69 in. x 6.25 in.
  • Voltage outputs: 5VDC, 12VDC, 24VDC. Outputs can be used to control any device requiring a DC voltage trigger.
  • Quick connections with RJ45 jacks using Cat5 or Cat6 cable.
  • Power supply (100-240VAC input, 24VDC 500mA output, 6 ft. cable with NEMA 1-15 plug and adaptors)

COMPLIANCE & CERTIFICATION

  • Made in U.S.A. with global components

A&E SPECIFICATIONS

  • The system shall include Lowell relay module RY-P2, which shall have a contact rating of 5A, 250VAC/30VDC with two DPDT relays activated by an external sequencer (SEQ-P4, ordered separately). Independent voltage outputs shall be 5VDC, 12VDC and 24VDC, which can be used to trigger any device requiring a DC voltage trigger. The relay module shall have RJ45 jacks to connect to remote power control (RPC-P Series), sequencer (SEQ-P4), or another relay RY-P1 or RY-P2). The unit shall have a steel chassis (5″L x 1.69″H x 6.25”W) with black finish and mounting holes. It shall include a power supply (100-240VAC input, 24VDC 500mA output) with 6 ft. cable and NEMA 1-15 plug (with several adaptors).
