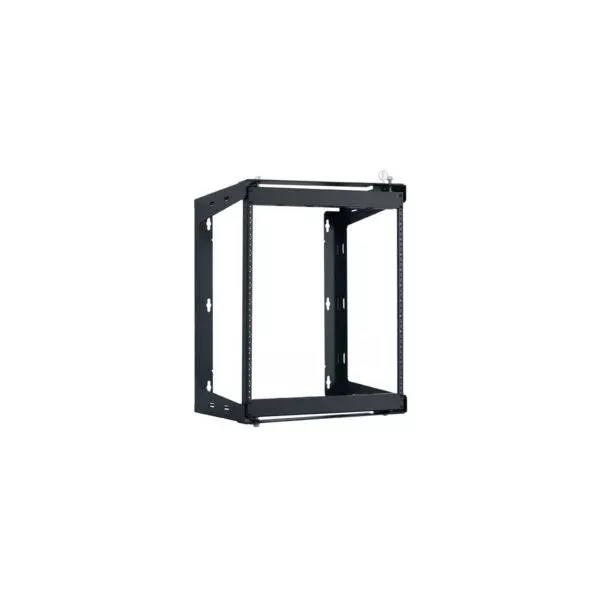

Lowell SR-1212

SR-1212: Swing Rack 12U x 12?D

Cost-effective solution for 19 inch network, communications and security equipment housed in secure areas. Swing open for full access to mounted equipment and wiring.

SPECIFICATIONS

• Rack Space:  12U
• Height:  26.24 in.
• Width: 19.75 in.
• Depth:  12.00 in. (11.88 usable)

FEATURES

• Heavy gauge steel construction
• Front gate swings open 90 degrees (left or right)
• Quick release detent pins secure frame closed
• Mounting holes on 16 in. centers
• Open sides and multiple tie loop points for cable routing
• One pair fixed position rails tapped 10-32
• Black semi-gloss powder epoxy finish
• Load Capacity:  100 lbs.
• Ships unassembled

COMPLIANCE & CERTIFICATION

• EIA/TIA compliant
• RoHS compliant
• Certified U.S. steel
• Made in Missouri, U.S.A.

A&E SPECIFICATIONS

• The 19” swing gate wall rack shall be Lowell Model SR-1212, which shall measure 26.24″H x 19.75″W x 12.00″D. It shall be constructed of heavy gauge certified U.S. steel with black semi-gloss powder epoxy finish. The front frame shall swing open 90 degrees (left or right orientation) to allow access to the rear of mounted equipment. The rack shall feature 12 rack units of panel space, quick release detent pins to secure the frame closed, tie loop points, and one pair of fixed position mounting rails tapped 10-32 on E.I.A. spacing. Load capacity shall be 100 lbs.
