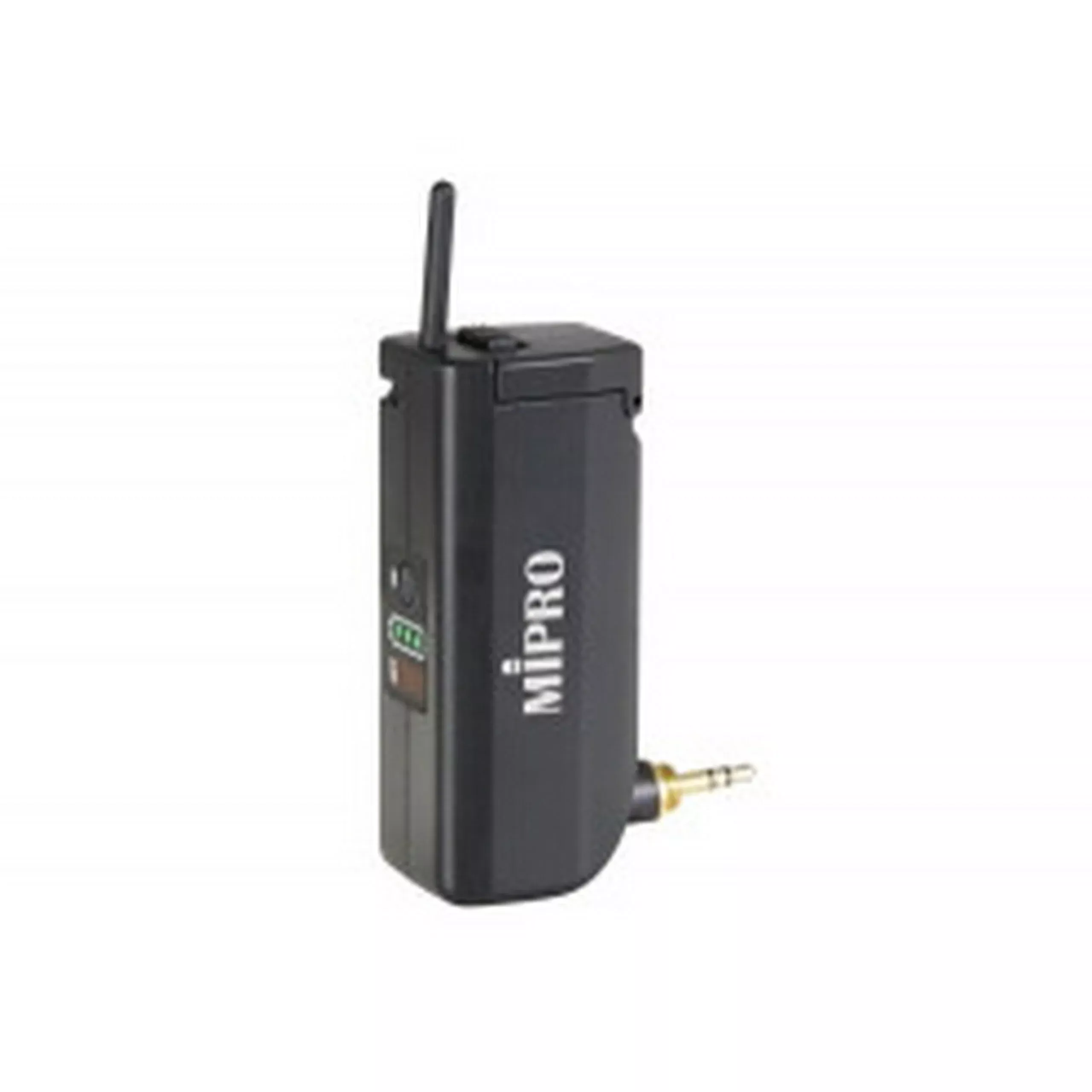

MIPRO MT-24 Wireless Digital Guitar Transmitter

MIPRO MT-24 Wireless Digital Guitar Transmitter

The MT-24 isa digital transmitter with an integrated 3.5 mm to 6.3 mm threaded adapter. Theplug can be rotated up to 90. Simply plug it into the guitar for a cable-free,truly wireless audio performance. The MT-24 wireless digital guitar transmitteris for use with MIPRO’s ACT 2400-Series systems. The MT-24 can be plugged intoan electric/acoustic guitar, bass, keyboard, accordion, PC, smartphone,projector with phone jack audio output for wireless audio amplification andperformance.

Key Features

• Easy to useand the plug can be rotated up to 90
• Operates in2.4 GHz user license-free ISM band
• Truediversity technology and stable digital FSK modulation circuit eliminate signaldropouts and ensure best reception quality
• CombiningFHSS frequency-hopping technique with adaptive tracking algorithm to preventinterference from other 2.4 GHz wireless devices
• Eliminatesthe annoying compander noise that exists in analog systems
• Transmitterhas high-efficiency circuitry design. The included single rechargeable lithiumbattery can be easily removed or interchanged for charging. The ICR-18500battery maintains a high charge capacity for up to full 600 charge cycles forcost saving and is environmentally friendly
• Easilyreplaceable battery or recharge the GT-24 directly with an adapter plug

TechnicalSpecifications

Frequency Range
2.4GHz ISMband (2.4 – 2.4835GHz)
RF Output Power
2 mW / 10 mWswitchable (country dependent)
Transmitting Mode
Frequencyhopping
Maximum Audio Input
6.5 dBV
Audio Sampling
24-bit /44.1 kHz Rate
Frequency Response
20 Hz – 20kHz
Latency
<4.0 ms
Battery Meter
4-levelgreen/red LED display
Impedance
1.0 M OHM
Connector
3.5 mm to6.3 mm threaded adapter
Battery Type
ICR-185001400mAh 3.7V rechargeable lithium battery
Current Consumption
138 mA
Operating Time
A 25-minutequick charge provides up to 1 hour usage. Minimum 10 hours of operation per4-hour full charge
Dimensions (WHD)
84 – 35 – 29mm / 3.3 – 1.4 – 1.1 “
Net Weight
Approx. 61 g/ 2.2 oz, excluding battery
