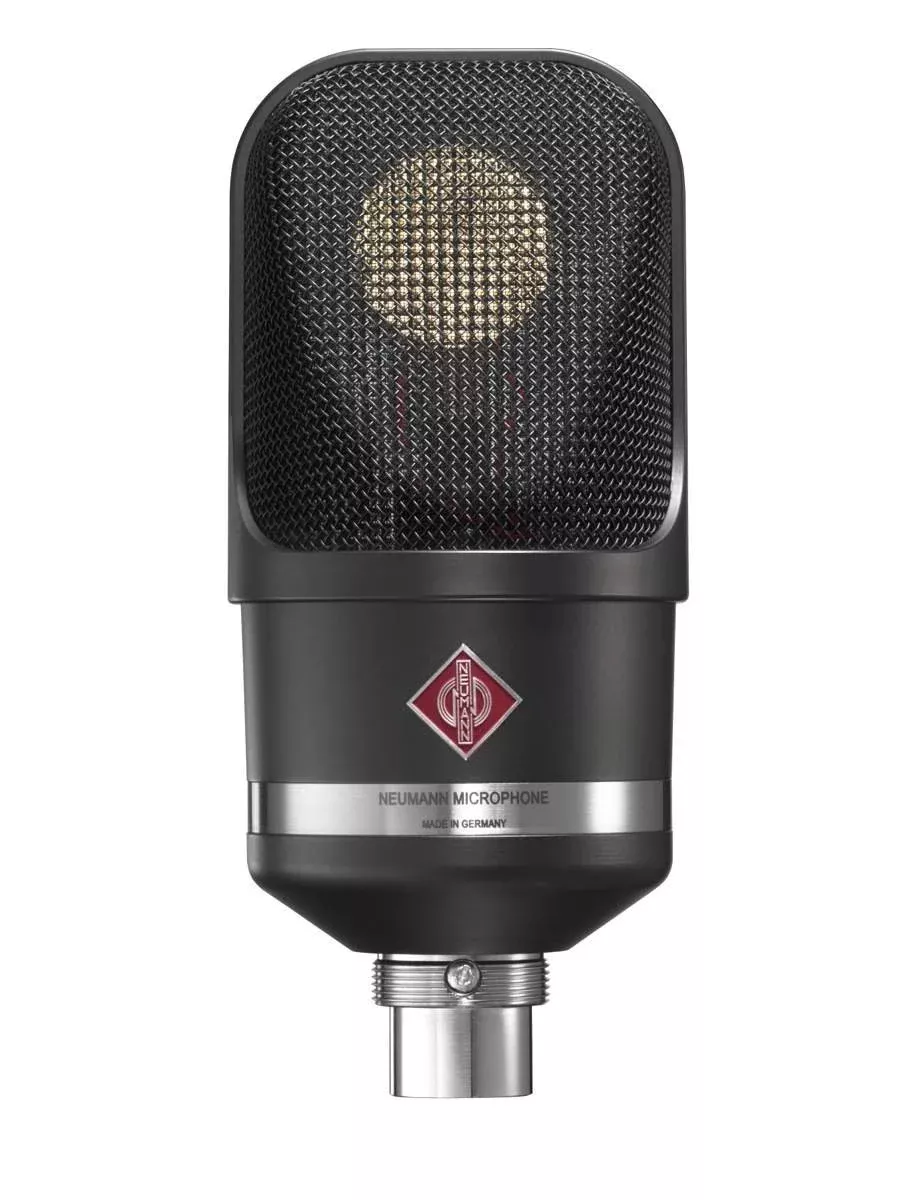

Neumann TLM 107 BK Large Diaphragm Condenser Multi Pattern Studio Microphone Black

Neumann TLM 107 BK Large Diaphragm Condenser Multi Pattern Studio Microphone Black

Classicproportions combined with attractive styling and fresh ideasthe TLM 107perfectly embodies the Neumann philosophy: Innovation based on tradition. Farfrom evoking vintage or retro nostalgia, the standard-setting TLM 107represents an impressive, modern studio microphone. Its extensive performancespectrum and high-precision reproduction, very close to the original, make theTLM 107 universally applicable, opening up the widest freedom in mixing andpost-production.

Key Features

• Black
• Multipatternlarge diaphragm microphone with 5 polar patterns (omni, wide cardioid,cardioid, hypercardioid, figure-eight)
• Navigationswitch with LED illuminated display for polar pattern, PAD and low cut
• Soundcharacteristics: transparent, natural reproduction of human voice, outstandingtransient response
• Balancedsound in all 5 polar pattern settings

TechnicalSpecifications

Acoustical operating principle
Pressuregradient transducer
Directional pattern
Omni, wideangle cardioid, cardioid, hypercardioid, figure-8
Frequency range
20 Hz … 20kHz
Sensitivity at 1 kHz into 1 kohms
11 mV/Pa
Rated impedance
50 ohms
Rated load impedance
1000 ohms
Equivalent noise level, CCIR1)
22 dB
Equivalent noise level, A-weighted1)
10 dB-A
Signal-to-noise ratio, CCIR1) (rel. 94 dBSPL)
72 dB
Signal-to-noise ratio, A-weighted1) (rel.94 dB SPL)
84 dB
Maximum SPL for THD <0.5%2)
141 dB
Maximum SPL for THD <0.5%2) withpre-attenuation -6 dB
147 dB
Maximum SPL for THD <0.5%2) withpre-attenuation -12 dB
153 dB
Maximum output voltage
10 dBu
Supply voltage (P48, IEC 61938)
48 V – 4 V
Current consumption (P48, IEC 61938)
3.2 mA
Matching connectors
XLR3F
Weight
445 g
Diameter
64 mm
Length
145 mm
