Obsidian Control NRE012 (Obsidian NRE-012)

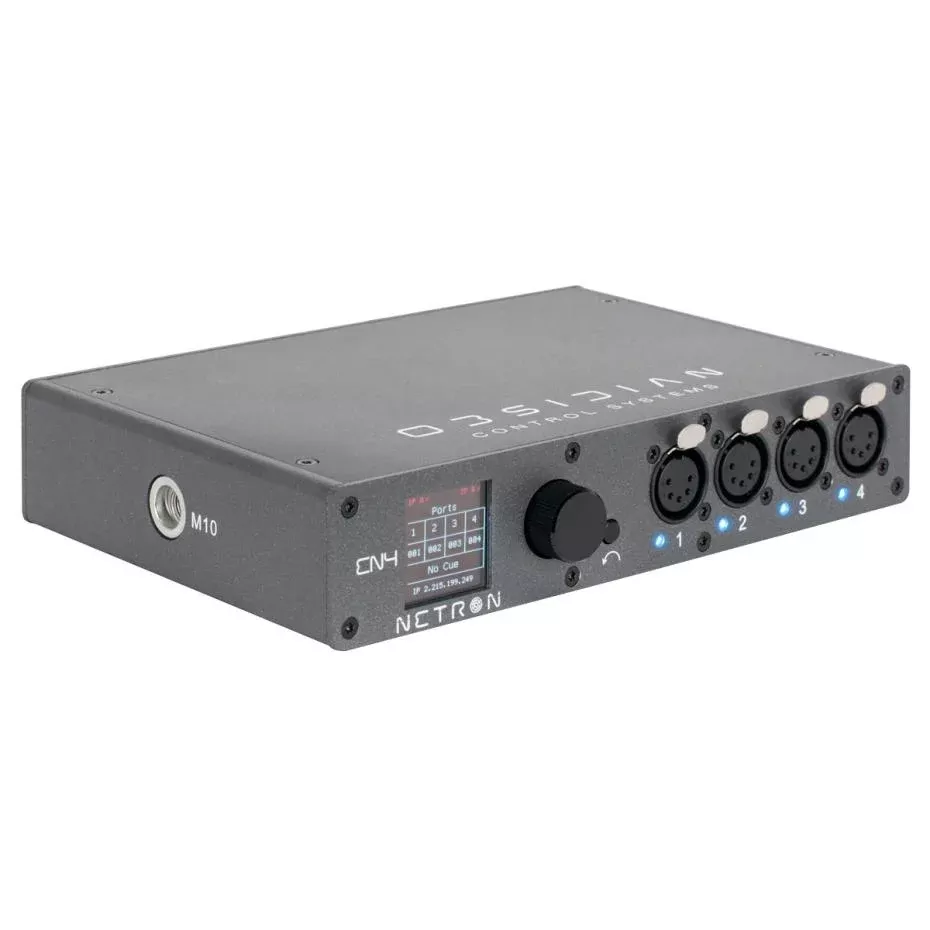

The Netron EN4 is a powerful Ethernet to DMX gateway with four RDM compatible ports. Designed for live production and installations with a rugged housing and high-performance processing it offers flexible mounting options to cover any situation.Key Features:RDM, Artnet and sACN supportFactory and user presets for plug and play setups Line Voltage or POE powered 1.8” OLED Display with rotary knob 99 Internal cues with fade and delay time Remote configuration via internal webpage Powder-coated aluminum ½ rack housingMounting:StandaloneTruss-mount (M10 or M12 mounting hole)Wall-mount horizontal or vertical (included)DIN Rail horizontal or vertical (included)Rack-mount option (requires NET Shelf)Connections:Front(4) 5pin DMX/RDM optically isolated portsPorts are bidirectional for DMX In and OutputFull color OLED displayEncoder w. Push to Select / Exit ButtonBackLocking Power In/Thru(2) Locking RJ45 Ethernet network connections (1x POE)Specifications:Physical Length: 215 mm (8.5 in.)Width: 139 mm (5.5 in.)Height: 42 mm (1.65 in.)Weight: 1 kg (2.2 lbs)Electrical100-240 V nominal, 50/60 Hz, 10WPOE 802.3afIncluded Items:1.5m Seetronic power cable (EU or US version)(2) Wallmount plates(2) DIN-Rail clamps
