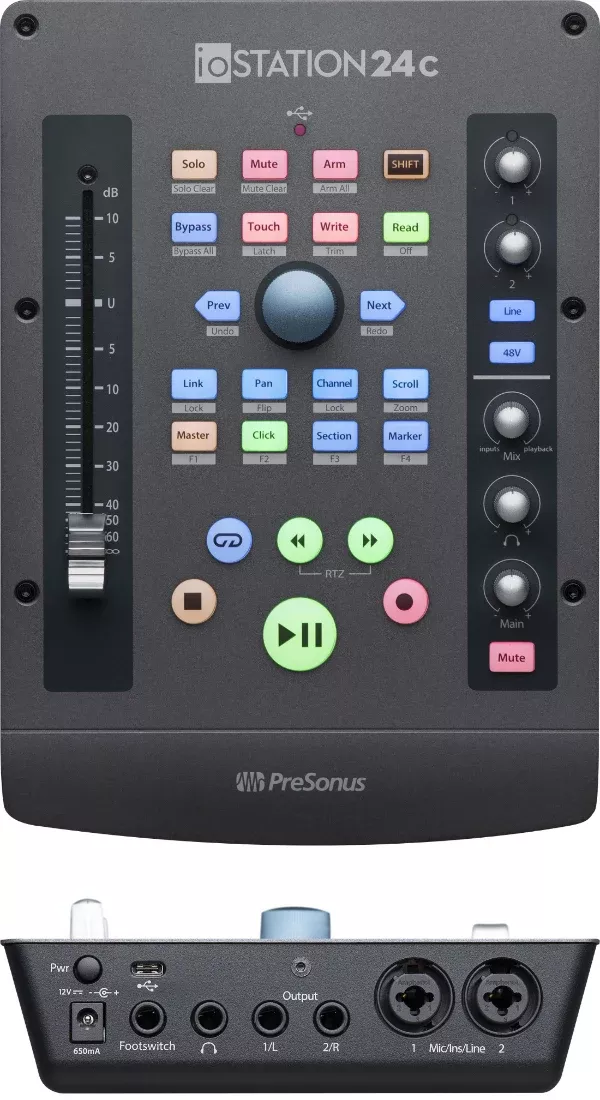

PreSonus ioStation 24c

ioStation 24c

The collaborative partner for the solo artist.

When you’re a solo artist, you have to be more than just creative to realize your vision; you must also be a producer and an audio engineer. The ioStation 24c audio interface and production controller provides the tools needed for all of these diverse roles in a compact, ergonomic desktop design that will fit into any home studio. Record your audio through two pristine XMAX mic preamps and high-definition 24-bit, 192 kHz analog-to-digital converters. Navigate your recordings with easy-to-use transport controls. Edit your production and automate parameters in your favorite DAW with the powerful Session Navigator and mix it all with a 100 mm touch-sensitive motorized fader. Whether you’re a musician producing your latest album or just getting started with your first podcast, the ioStation 24c gives you the tools you need to record and mix with the ease of hands-on, tactile control—all in a single device that doesn’t clutter your creative space.

Features

General Features

• Two products in one: audio interface and production controller
• Record through two high-quality XMAX mic preamps
• Control your favorite DAW with a touch-sensitive motorized fader and intuitive navigation controls
• Compact, ergonomic design fits into any studio, whether in your bedroom or your backpack

Recording Features

• USB-C®- compatible (USB 2.0), 24-bit/192 kHz audio interface
• 2 mic/instrument/line inputs with XMAX mic preamps
• 2 balanced ¼-inch TRS main outputs
• Simultaneous I/O up to 2 inputs and 2 outputs
• Mixer knob for low-latency direct input monitoring
• 1 ¼-inch headphone output with independent level control
• USB 2.0 connectivity, macOS®/Windows® compatible

Production Features

• Single touch-sensitive, 100 mm long-throw, motorized fader
• Large, 360° button encoder
• Complete recording-transport controls: Play, Stop, Fast Forward, Rewind, Record, Loop
• Drop Marker, Next/Prev Marker, Next/Prev Event
• General session controls: Undo/Redo, Arm All, Solo/Mute Clear, Click On/Off
• Session Navigator provides quick control over Track Scrolling, Timeline Scrolling, and much more
• Channel Controls: Level, Pan, Solo, Mute, Rec Arm
• Automation Controls: Touch, Latch, Trim, Write, Read, Off
• Native Studio One® support with tightly integrated control
• Dedicated MCU modes for Logic, Live, and Cubase / Nuendo
• Customized HUI implementation for Pro Tools
• Footswitch input for hands-free start/stop (footswitch not included)

Included Software

• Studio One Artist recording and production software
• Over 6 GB of additional loops and sample content
• ?Studio Magic Software Suite
• Ableton® Live Lite included

Computer system requirements:
Below are the minimum computer-system requirements for the ioStation 24c.

Windows®
Windows 10 (64-bit only)
Intel® Core™ i3 / AMD A10 processor or better
4 GB RAM (8 GB or more recommended)
Mac®
macOS® 10.13 or higher (64-bit only)
Intel Core i3 or better (Native support for Apple Silicon)
?4 GB RAM (8 GB or more recommended)
Mac and Windows Systems
USB-C® or USB-A 2.0 port compatibility
32 GB hard disk space
PreSonus® Universal Control 2.0 or higher
Monitor with 1366×768 resolution (high-dpi monitor recommended)
Multitouch-enabled monitor required for touch operation
Note: The minimum system requirements may differ for DAWs other than Studio One®. Please check the requirements for your DAW of choice with its manufacturer.
Note that the speed of your processor, amount of RAM and size and speed of your hard drive will greatly affect the overall performance of your recording system. Also, a more powerful system (faster processor with more RAM) will allow for lower latency (signal delay) than you might experience while monitoring audio signals.
VST Compatible Logo ASIO Compatible Logo

VST is a registered trademark of Steinberg Media Technologies GmbH
ASIO is a trademark and software of Steinberg Media Technologies GmbH
USB-C® is a registered trademark of USB Implementers Forum
All other trademarks are property of their respective holders
Technical Specifications
Microphone Preamp
Type XLR Female (via Combo), Balanced
Maximum Input Level +16 dBu (Balanced, min. gain)
Gain Control Range 80 dB
Frequency Response 20 Hz to 20 kHz (±0.15 dB, unity gain, 48 kHz)
Dynamic Range> 107 dB (A-wtd, min. gain)
Total Harmonic Distortion <0.007% (1 kHz, min. gain)
EIN <-128 dBu (max gain, 40?, 22 kHz BW, A-wtd)
Input Impedance 1.6 k?
Phantom Power +48V,> 8 mA per input
Instrument Inputs
Type ¼” TS Female (via Combo), Unbalanced
Maximum Input Level +15 dBu (Unbalanced, min. gain)
Gain Control Range 80 dB
Frequency Response 20 Hz to 20 kHz (±0.2 dB, unity gain, 48 kHz)
Dynamic Range> 110 dB (A-wtd, min. gain)
Total Harmonic Distortion <0.012% (1kHz, -1 dBFS, min. gain)
Input Impedance> 1 M?
Line Inputs
Type ¼” TRS Female (via Combo), Balanced
Maximum Input Level + 22 dBu (Balanced, min. gain)
Frequency Response 20 Hz to 20 kHz (±0.05 dB, unity gain, 48 kHz)
Dynamic Range> 114 dB (A-wtd, min. gain)
Total Harmonic Distortion <0.007% (1 kHz, -1 dBFS, min. gain)
Input Impedance 10 k?
Main and Line Outputs
Type ¼” TRS Female, impedance balanced
Maximum Output Level +18 dBu (Balanced)
Frequency Response 20 Hz to 20 kHz (±0.2 dB, unity gain, 48 kHz)
Dynamic Range> 109 dB (A-wtd)
Total Harmonic Distortion <0.005% (1 kHz, +4 dBu)
Headphone Outputs
Type ¼” TRS Female, Stereo, Unbalanced
Maximum Output Level 150 mW/channel (56? load)
Frequency Response 20 Hz to 20 kHz (±0.2 dB, 56? load, 48 kHz)
Dynamic Range> 107 dB (A-wtd)
Total Harmonic Distortion <0.02% (1 kHz, -1 dBFS, no load)
Headphone Impedance (working range) 32? to 300?
Digital Audio
Connection Type USB 2.0 over USB-C® Compatible Connection
ADC Dynamic Range 115 dB (A-wtd)
DAC Dynamic Range 115 dB (A-wtd)
Bit Depth 24 bits
Supported Sample Rates (kHz) 44.1, 48, 88.2, 96, 176.4, 192 kHz
Clock
Jitter <70 ps RMS (20 Hz – 20 kHz)
Jitter Attenuation> 60 dB (1 ns in => 1 ps out)
Power
12 VDC, 1.2A, external power supply
Physical
Height 2.4″ (61 mm)
Depth 6.8″ (172 mm)
Width 9.6″ (244 mm)
Weight 2.2 lbs (1 kg)
As a commitment to constant improvement, PreSonus® Audio Electronics, Inc., reserves the right to change any specification stated herein, at any time, without notification.
