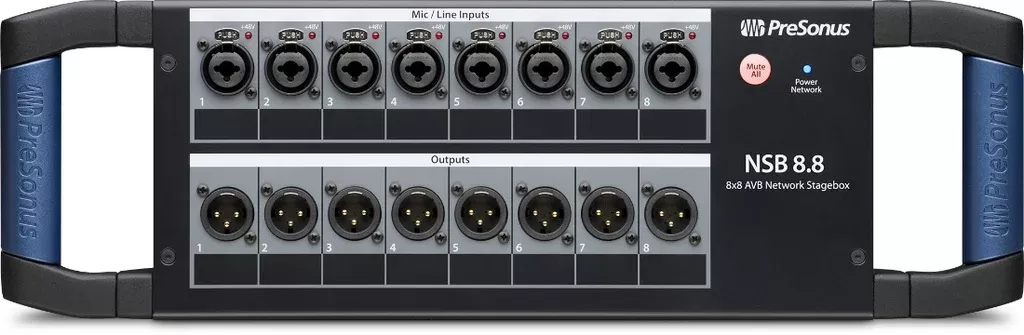

PreSonus NSB 8.8

NSB 8.8

Inputs and outputs wherever you need them.

The PreSonus® NSB 8.8 networked stage box lets you put your analog I/O for your StudioLive® Series III digital mixer wherever you need it. Equipped with eight digitally controlled XMAX mic preamps, eight balanced line-level inputs, and eight analog outputs, the NSB 8.8 integrates seamlessly into StudioLive Series III digital mixers with a single Ethernet connection. Remote control input trims, phantom power, and more directly from your StudioLive Series III console or from UC Surface remote mixing software on your tablet or laptop.

Features

• 8×8 network stage box for StudioLive Series III console mixers
• 8 digitally controlled XMAX mic/line inputs with gain compensation for shared streams
• 8 line outputs
• Easy configuration from StudioLive Series III console mixers and UC Surface
• Built-in 2-port AVB switch with locking Ethernet connections for easy point-to-point and daisy-chain network configurations
• Rugged all-metal stage box enclosure
• Optional rack ears
• Compatible with stage pockets from Ace Backstage

Technical Specifications
Mi?crophone Preamplifier
Input Type XLR Female, balanced
Frequency Response to Main Output (at unity gain) 20-20 kHz, ±0.5 dBu
Input Impedance 1 k?
THD to Main Output <0.005%, +4 dBu, 20-20 kHz, unity gain, unwtd
S/N Ratio to Main Output (Ref = +4 dB, 20 kHz BW, unity gain, A-wtd) 94 dB
Common Mode Rejection Ratio (1 kHz at unity gain) 65 dB
Gain Control Range (±1 dB) 0 dB to +60 dB
Maximum Input Level (unity gain) +12 dBu
Phantom Power (±2 VDC) 48 VDC, switchable per channel
Line Inputs
Type ¼” TRS Female, balanced
Frequency Response to Main Output (at unity gain) 20-20 kHz, ±0.5 dBu
Input Impedance 10 k?
THD to Main Output <0.005%, +4 dBu, 20-20 kHz, unity gain, unwtd
S/N Ratio to Main Output (Ref = +4 dB, 20 kHz BW, unity gain, A-wtd) 94 dB
Maximum Input Level +18 dBu
XLR Outputs
Type XLR Male, balanced
Maximum Output Level +24 dBu, ±0.5 dBu
Output Impedance 100?
Digital Audio
ADC Dynamic Range 115 dB (A-wtd, 48 kHz)
DAC Dynamic Range 115 dB (A-wtd, 48 kHz)
AVB Audio Network Ports Locking XLR Ethernet
Sampling Rate 48 kHz, 44.1 kHz
Power
Connector Locking IEC
Input-Voltage Range 90 to 230 VAC (±10%)
Physical
Height 5.2” (132 mm)
Width 16.7” (424 mm)
Depth 4.5” (114 mm)
Weight 5.4 lbs. (2.4 kg)
