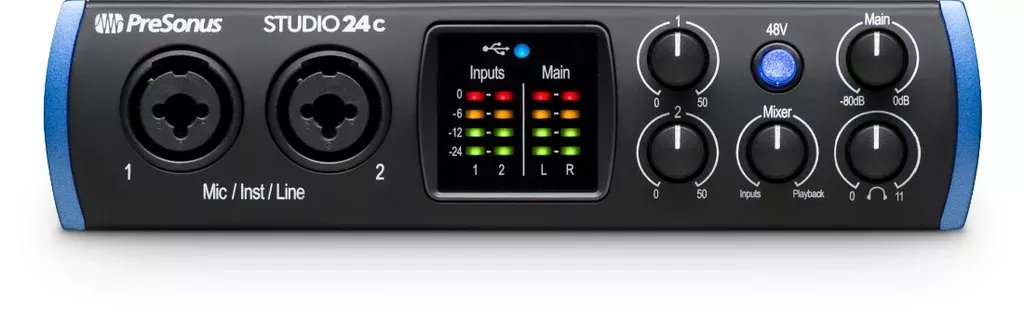

PreSonus Studio 24c

Original price was: $135.99.Current price is: $94.84.

Sale!
SKU: STUDIO-24C Category:
Share


Studio 24c

  • USB-C™ bus-powered, 2×2 audio interface with MIDI for macOS® and Windows®
  • 24-bit resolution; 44.1, 48, 88.2, 96, 176.4, and 192 kHz sampling rates
  • 2 mic/instrument/line inputs with XMAX-L solid-state mic preamps
  • 2 balanced ¼” TRS main outputs with front-panel level control
  • USB-C™ to USB-C™ and USB-C™ to USB-A cables included for compatibility with most computers
  • Studio One® Artist and Studio Magic Plug-in Suite included


Computer system requirements:

Below are the minimum computer-system requirements.

Mac

  • Mac® OS X 10.8.5 64-bit or later
  • Intel® i-series 2 GHz multicore processor (or AMD equivalent) or faster
  • 4 GB RAM (8 GB or more recommended)

Windows

  • Windows® 7 x64/x86 SP1 + platform update, Windows 8.1 x64/x86, Windows 10 x64/x86
  • Intel i-series 2 GHz multicore processor (or AMD equivalent) or faster
  • 4 GB RAM (8 GB or more recommended)

Mac and Windows Systems

  • USB-C™ or USB-A 2.0 port
  • 32 GB hard disk space
  • PreSonus Universal Control 2.0 or higher
  • Monitor with 1366×768 resolution (high-dpi monitor recommended)
  • Multitouch-enabled monitor required for touch operation


Technical Specifications

General
Sample Rates 44.1, 48, 88.2, 96, 176.4, or 192 kHz
Converter Resolution 24 bit
ADC Converter Dynamic Range 108 dB
DAC Converter Dynamic Range 108 dB

Microphone Inputs
Maximum Level +10 dBu (±0.5 dBu, min gain)
Gain Range 50 dB
Frequency Response 20 Hz – 20 kHz  (±0.3 dBu, unity gain, unwtd)
Dynamic Range 106 dB (A-wtd, min gain)
THD + N 0.004% (1 kHz, -1 dBFS, min gain)
EIN -126 dBu (A-weighted, 150?, max gain)
Input Impedance 1.4 k?
Phantom Power +48 VDC (10 mA total)

Instrument Inputs
Maximum Level +19 dBu (min gain)
Gain Range 50 dB
Frequency Response 20 Hz – 20  kHz (±0.1 dBu, unity gain, unwtd)
Dynamic Range 105 dB (A-wtd, unity gain)
THD + N 0.002% (1 kHz, min gain)
Input Impedance 750 k?

Main Outputs
Type

¼” TRS, Female
Maximum Level +10 dBu (1 kHz, unity gain, balanced)
Frequency Response 20 Hz – 20 kHz (±0.3 dBu, unity gain, unwtd)
Dynamic Range 104 dB (unity gain, unwtd)
THD + N 0.001% ( 1 kHz, -1 dBFS, unity gain)

Headphone Outputs
Maximum Power 47 mW / channel @ 56?
Frequency Response 20 Hz – 20 kHz (±0.5 dBu, unity gain, unwtd)
Dynamic Range 83 dB (A-wtd, 56? load)
THD + N 0.01% (1 kHz, 0 dBFS, loaded)
Impedance Working Range 32? to 300?

Physical
Height 1.75″ (44 mm)
Width 7″ (180 mm)
Depth 5.5″ (144 mm)
Weight 2 lbs. (0.9 kg)
