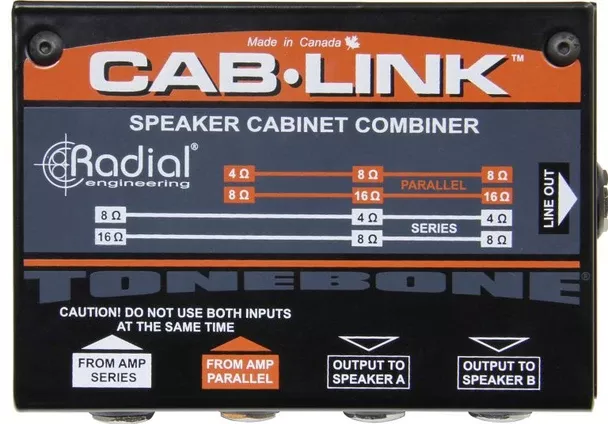

Radial Cab-Link Passive Speaker Cabinet Merger

Features

• Connect one amplifier output to two speaker cabinets
• Can use in series or parallel configuration
• Compact and completely passive, no need for power
• Additional line output with level control

The simple way to connect two cabinets to your amp

Whether you want to wire up your cabinets in series or in a parallel configuration, the Cab-Link makes things easy. Simply connect two speaker cables from the Cab-Link outputs to each of your cabinets, and a third speaker cable from the output of the amp head to either the series or the parallel input. The Cab-Link reconfigures automatically depending on which input is used, and a handy guide on the top of the unit lets you know which input should be used to best match the impedance between your amp and the cabinets. A line output with a level control provides additional functionality and can be used to feed the input of another amplifier or an effects unit.

Combine cabinets in parallel configuration

Connect two 8 Ohm speaker cabinets in parallel and run both from a single 4 Ohm output on your amplifier.

Combine cabinets in series configuration

Connect two 8 Ohm speaker cabinets in series to use with a 16 Ohm amplifier output.

Use the line out to feed another amplifier

Run a second amplifier from the line out for a wet/dry setup. Fine tune the output with the level control
