RDL D-J1 Microphone Input Assembly – XLR, Terminal block

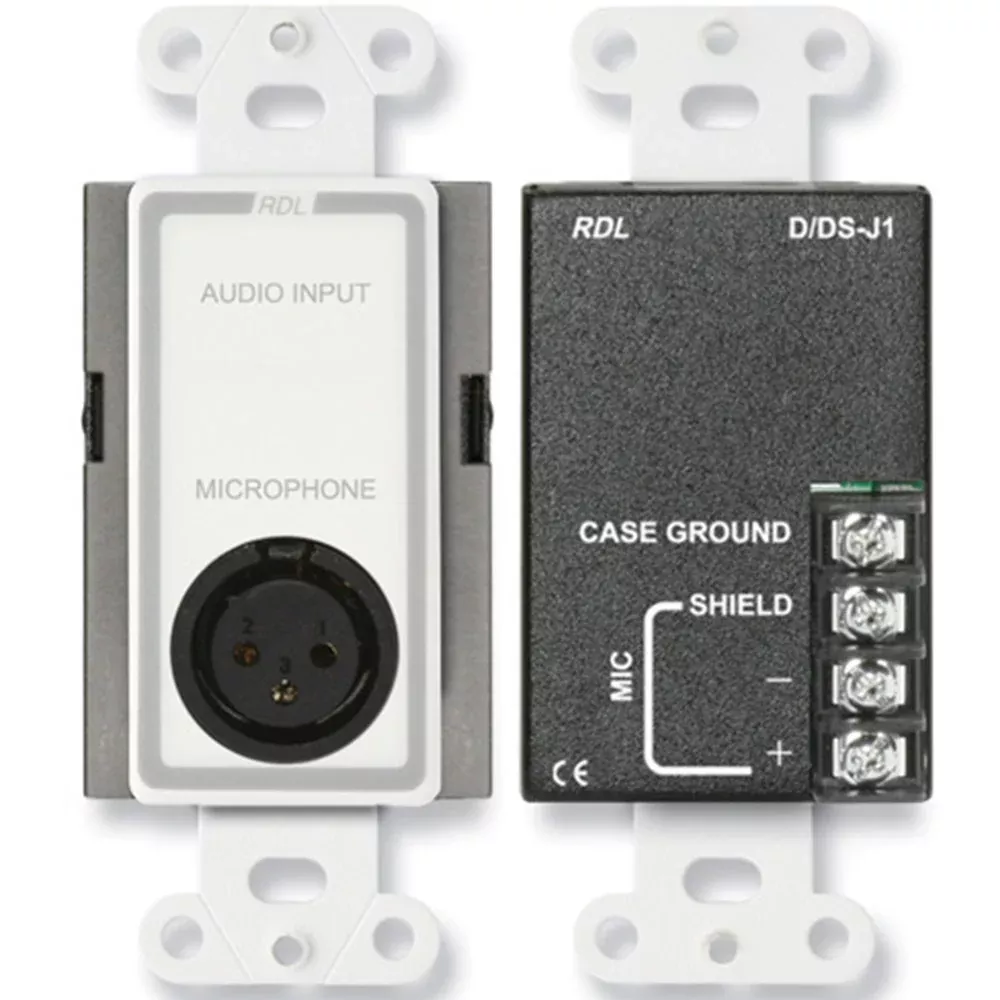

The D SERIES-J1 is a complete microphone input panel assembly. Connections to the female front?panel XLR jack are made on a rear barrier block. Four terminals are provided: CASE GROUND, SHIELD (XLR pin 1), + (XLR pin 2) and – (XLR pin 3). The installer may install a jumper between the SHIELD connection and CASE GROUND if desired. The back of the D SERIES-J1 is finished with a metal enclosure clearly labeled for easy installation.

The D SERIES-J1 fits directly into back boxes, available from RDL to fit cabinets or US or international walls (RDL WB-1U). They may be mounted directly into cabinets or most standard US single gang electrical boxes.

Features:

• Wall Mounted Microphone Input Panel
• XLR Input Connector with Gold Contacts
• Barrier Block Wiring Connections
• Ground-Lift Terminals on Barrier Block
