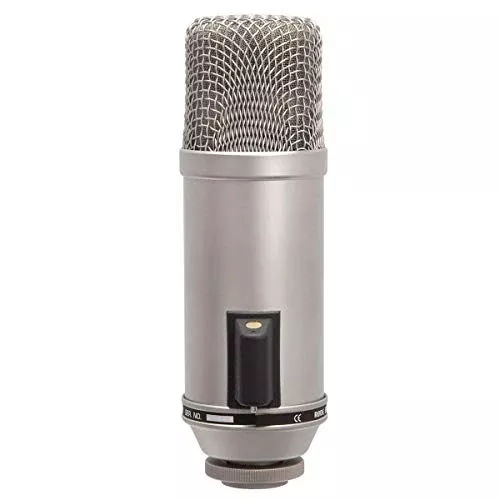

RODE Broadcaster End-Address Broadcast Condenser Microphone
US-DA244FDA
The RODEBroadcaster is a large diaphragm, end-address condenser microphone designed toprovide the ultimate performance for broadcast vocal applications.
Its rich,full quality tailored response has an emphasised proximity effect that has madeit a standard in radio stations the world over. It is equally suitable as avoice-over microphone for film and television
TheBroadcaster features an internal pop filter, designed to minimise plosivessounds that can overload the microphone capsule and distort the audio output.In addition to the Broadcaster’s native 20Hz-20kHz response, a selectablehigh-pass filter at 75Hz is available which will prevent low-end noise such asair conditioners and traffic from being recorded.
TheBroadcaster features an innovative ‘On-Air’ indicator on the body that can bewired for external activation by the ‘Channel On/Mute’ function on manyconsoles. If not connected to a console or switch, the indicator will remainlit whenever the microphone has power.
The RODEBroadcaster microphone is designed and made in Australia, and covered by RODEMicrophones’ industry leading 10 year warranty.
Key Features
- HF2 1”capsule with gold plated diaphragm
- On-Airindicator LED
- Ultra-lownoise
- Voicetailored low-cut feature
- Internalpop-filter
TechnicalSpecifications
Acoustic Principle
PressureGradient
Active Electronics
JFETimpedance converter with bipolar output buffer
Capsule
1.00″
Polar Pattern
Cardioid
Address Type
End
Frequency Range
20Hz – 20kHz
Output Impedance
40 OHM
Maximum SPL
128dBSPL
Maximum Output Level
2.0mV (@1kHz, 1% THD into 1K OHM load)
Sensitivity
-34.0dB re 1Volt/Pascal (20.00mV @ 94 dB SPL) +/- 2 dB @ 1kHz
Equivalent Noise Level (A-weighted)
14dBA
Power Options
+24V phantompower+48V phantom power
Weight
577.00g
Dimensions
167.00mmH x50.00mmW x 65.00mmD
Output
XLR Output
